Home
>>
Nissan-Datsun
>>
2007
>>
X-Trail LE
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Shift Control System
>>
Control Device Removal and Installation
>>
Control Cable Components
Control Cable Components

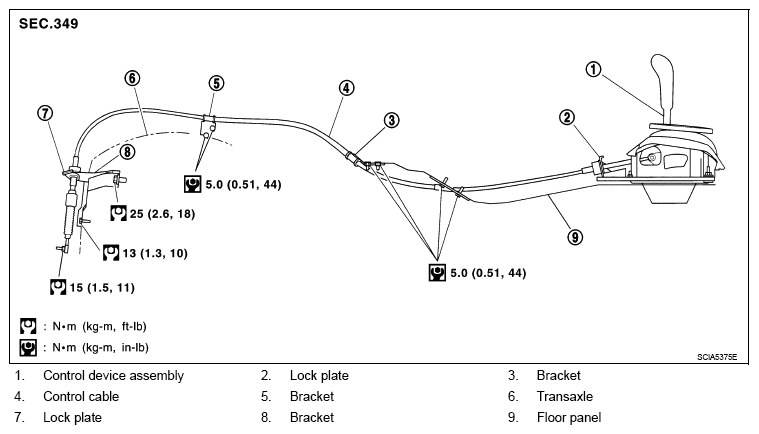

Fig 1: Control Cable Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
