Control Valve Upper Body: Assembly: Notes

CAUTION:

• Apply ATF to all components before installation.
• Lay control valve body down when installing valves. Do not stand control valve body upright.

Fig 1: Precaution For Control Valves

Courtesy of NISSAN MOTOR CO., U.S.A.

• Lubricate control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.

CAUTION:

• Install each control valve one by one.
• Install control valves after checking, because some of them are similar.
• Be careful not to scratch or damage valve body.

Fig 2: Installing Control Valves

Courtesy of NISSAN MOTOR CO., U.S.A.

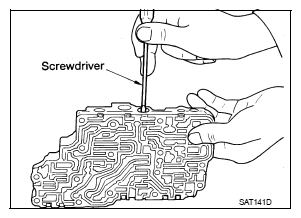

• Wrap a small screwdriver with vinyl tape and use it to insert valves into their proper positions.

Fig 3: Inserting Valves

Courtesy of NISSAN MOTOR CO., U.S.A.
