Control Valve Assembly: Components

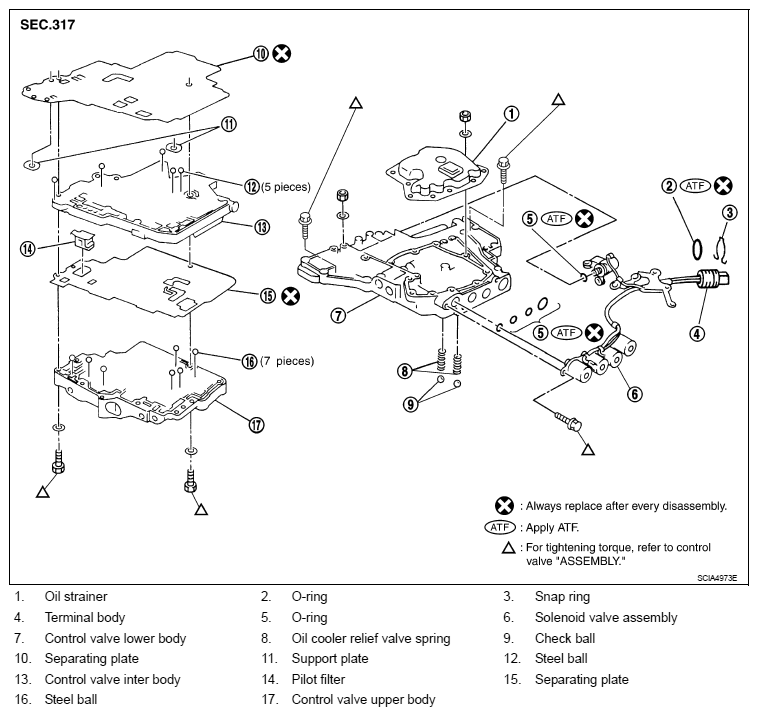

Fig 1: Identifying Control Valve Assembly Components

G06154529

Courtesy of NISSAN MOTOR CO., U.S.A.
