Control Valve Assembly: Assembly

Install control valve upper, inter and lower body.
1. Place oil circuit of control valve upper body face up. Install steel balls in their proper positions.

  Fig 1: Identifying Steel Balls
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install reamer bolts f from bottom of control valve upper body. Using reamer bolts as guides, install separating plate as a set.
  CAUTION: Do not reuse separating plate.

  Fig 2: Identifying Separating Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install pilot filter.

  Fig 3: Identifying Pilot Filter
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Place control valve inter body as shown in illustration (side of control valve lower body face up). Install steel balls in their proper positions.

  Fig 4: Identifying Steel Balls
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Install control valve inter body on control valve upper body using reamer bolts f as guides.
  CAUTION: Be careful not to dislocate or drop steel balls.

  Fig 5: Identifying Control Valve Inter Body On Control Valve Upper Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
6. Install check balls and oil cooler relief valve springs in their proper positions in control valve lower body.

  Fig 6: Identifying Check Balls And Oil Cooler Relief Valve Springs
  Courtesy of NISSAN MOTOR CO., U.S.A.
7. Install bolts e from bottom of control valve lower body. Using bolts e as guides, install separating plate as a set.
  CAUTION: Do not reuse separating plate.
8. Install support plates on control valve lower body.

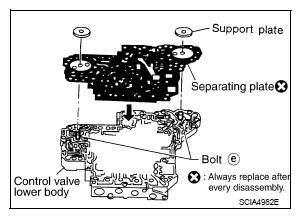

  Fig 7: Identifying Support Plates On Control Valve Lower Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
9. Install control valve lower body on control valve inter body using reamer bolts f as guides and tighten reamer bolts f slightly.
Fig 8: Identifying Control Valve Lower Body On Control Valve Inter Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-rings on solenoid valves and terminal body.
CAUTION:
- Do not reuse O-rings.
- Apply ATF to O-rings.
Fig 9: Identifying O-Rings
Courtesy of NISSAN MOTOR CO., U.S.A.

Install and tighten bolts.

Bolt length, number and location:

BOLT SYMBOL REFERENCE

Bolt symbol	a	b	c	d	e	f	g
Bolt length "l " mm (in) (Measure bolt threads, not including bolt head)	13.5 (0.531)	58.0 (2.283)	40.0 (1.575)	66.0 (2.598)	33.0 (1.299)	78.0 (3.071)	18.0 (0.709)
Number of bolts	6	3	6	11	2	2	1
Tightening torque N.m (kg-m, in-lb)	7.8 (0.80, 69)				4.0 (0.41, 35)	7.8 (0.80, 69)
f: Reamer bolt and nut.

Fig 10: Identifying Control Valve Upper, Inter And Lower Bodies

Courtesy of NISSAN MOTOR CO., U.S.A.

Install and tighten bolts b and nut f to specified torque.
Torque Specifications : 7.8 N.m (0.80 kg-m, 69 in-lb)

Fig 11: Identifying Control Valve Upper Body Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install solenoid valve assembly and line pressure solenoid valve on control valve assembly.
Tighten bolts a , c and g to specified torque.
Torque Specifications : 7.8 N.m (0.80 kg-m, 69 in-lb)

Fig 12: Identifying Bolt, Solenoid Valve Assembly And Line Pressure Solenoid Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Set oil strainer, then tighten bolts a, d and nut f to specified torque.
Torque Specifications : 7.8 N.m (0.80 kg-m, 69 in-lb)

Fig 13: Identifying Oil Strainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten bolts e to specified torque.
Torque Specifications : 4.0 N.m (0.41 kg-m, 35 in-lb)

Fig 14: Identifying Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
