Automatic Transmission: Overhaul: Components

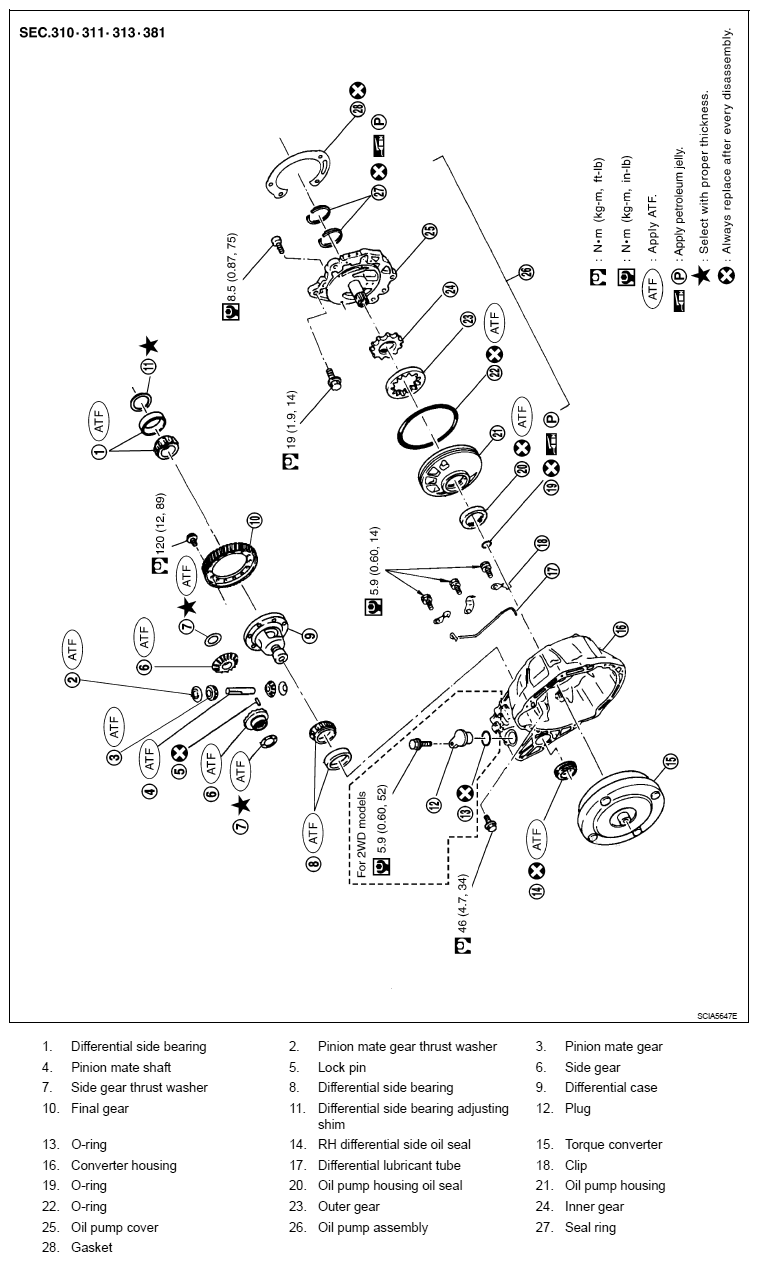

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

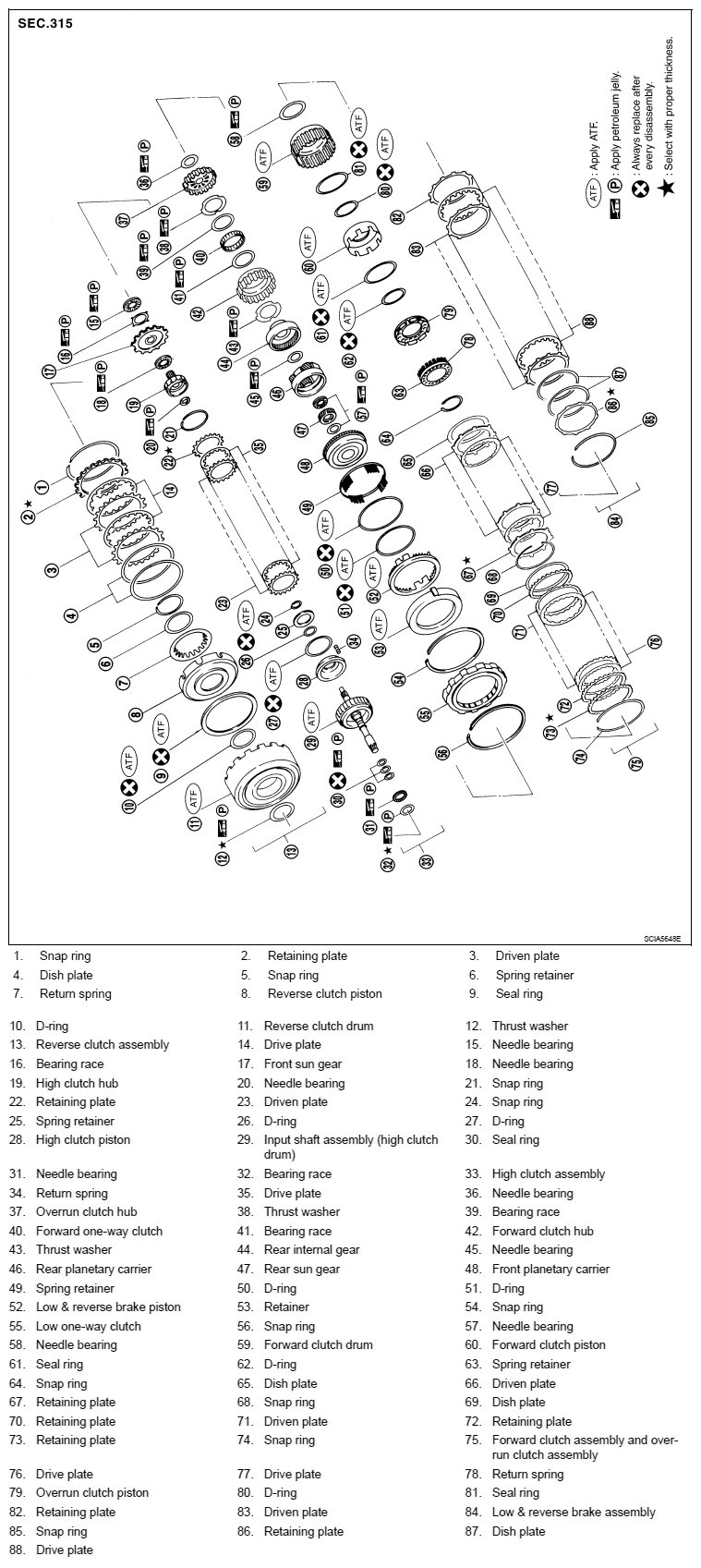

Fig 2: Identifying Transaxle Assembly Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

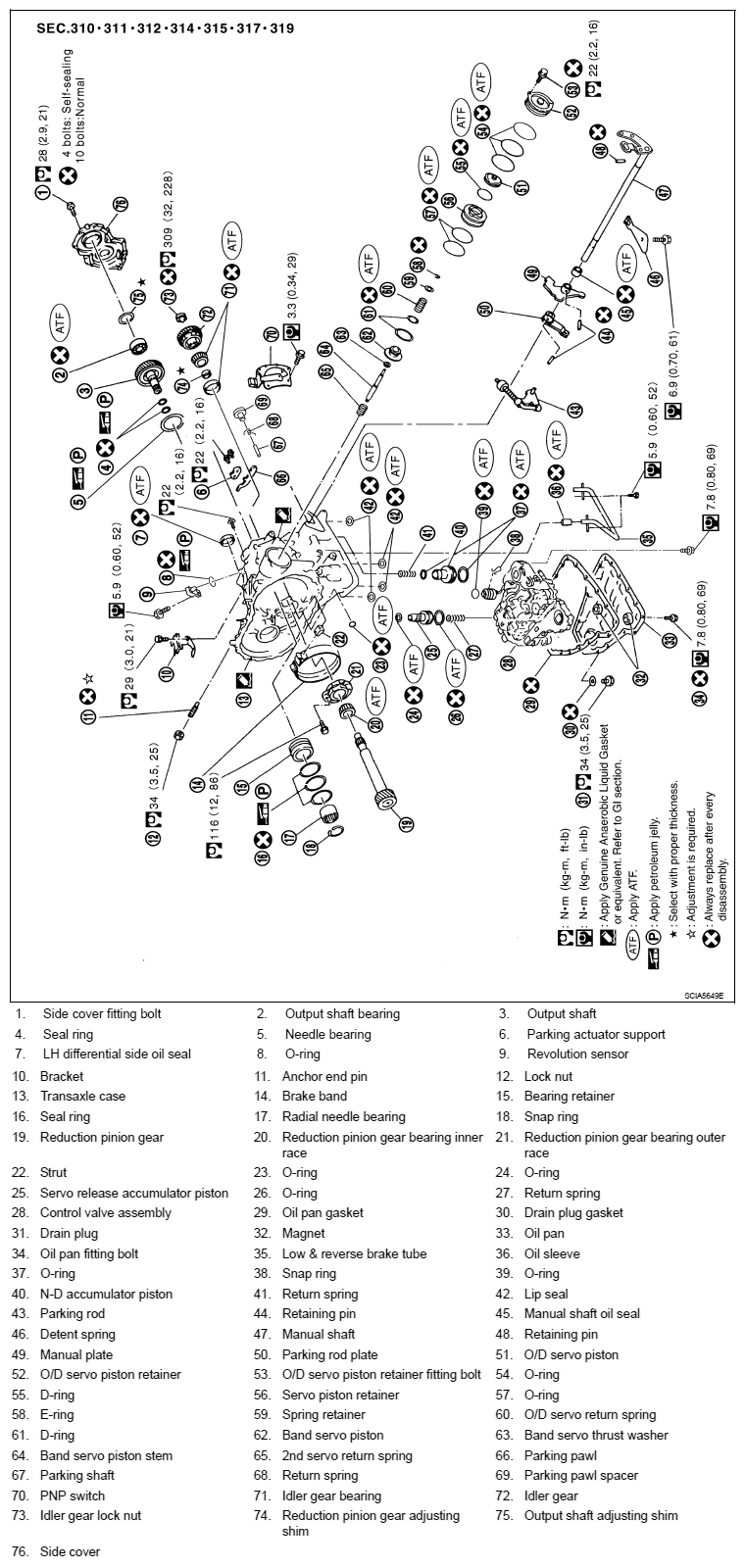

Fig 3: Transaxle Assembly Replacement Components With Torque Specifications (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
