Revolution Sensor Replacement: Components

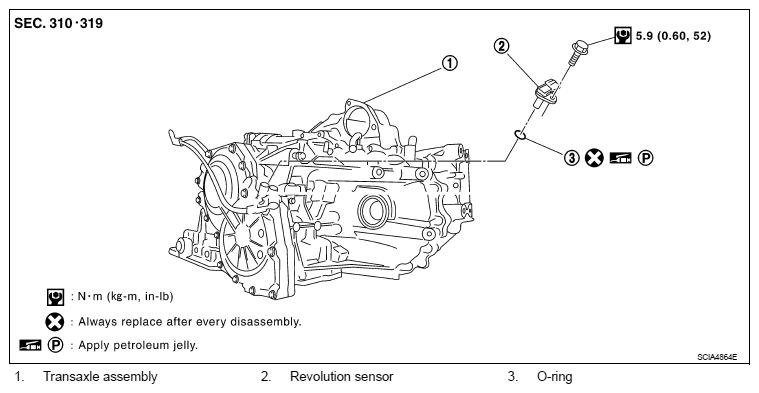

Fig 1: Revolution Sensor Replacement Components With Torque Specifications

G06154417

Courtesy of NISSAN MOTOR CO., U.S.A.
