Key Interlock Cable: Removal

  1. Unlock slider by squeezing lock tabs on slider from adjuster holder and remove interlock rod from key interlock cable.

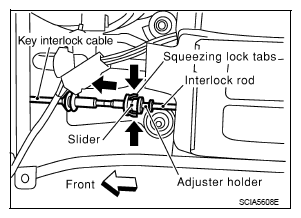

    Fig 1: Unlocking Slider By Squeezing
    G06154392Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove lock plate from steering lock assembly and remove key interlock cable.
Fig 2: Identifying Steering Lock Assembly And Key Interlock Cable
G06154393Courtesy of NISSAN MOTOR CO., U.S.A.
