Key Interlock Cable: Installation

Turn ignition switch lock position.
Set selector lever to "P" position.
Set key interlock cable to steering lock assembly and install lock plate.
Clamp key interlock cable to steering column and fix to key interlock cable with band.

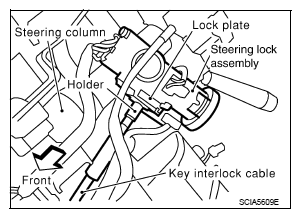

Fig 1: Identifying Key Interlock Cable, Steering Lock Assembly And Lock Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.

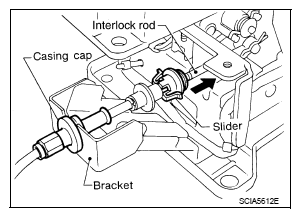

Fig 2: Inserting Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Install casing cap to bracket.
Move slider in order to fix adjuster holder to interlock rod.

Fig 3: Installing Casing Cap To Bracket

Courtesy of NISSAN MOTOR CO., U.S.A.
