Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
A/T Control System
>>
TCM Function
>>
Control System Diagram
Control System Diagram

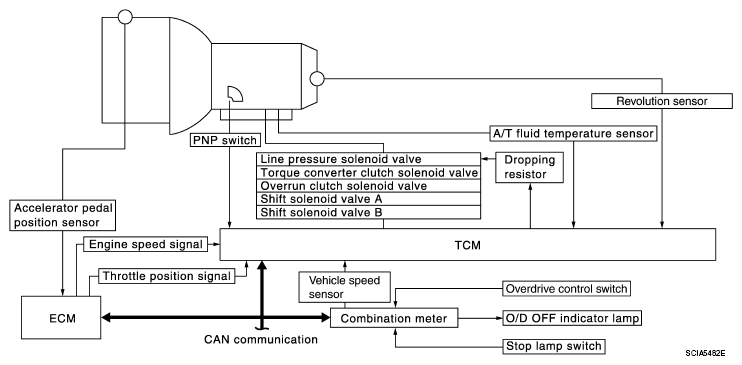

Fig 1: Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
