Overrun Clutch Operating Conditions

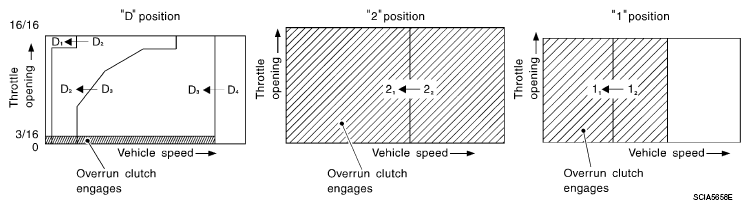

Fig 1: Overrun Clutch Operating Conditions
G06154038Courtesy of NISSAN MOTOR CO., U.S.A.
SELECTOR LEVER POSITION CHART

Selector lever position Gear position Throttle opening
"D" position D1 , D2 , D3 gear position Less than 3/16
"2" position 21 , 22 gear position At any position
"1" position 11 , 12 gear position
