Hydraulic Line: Component
CAUTION:
Securely insert harness connector to oil pressure sensor.

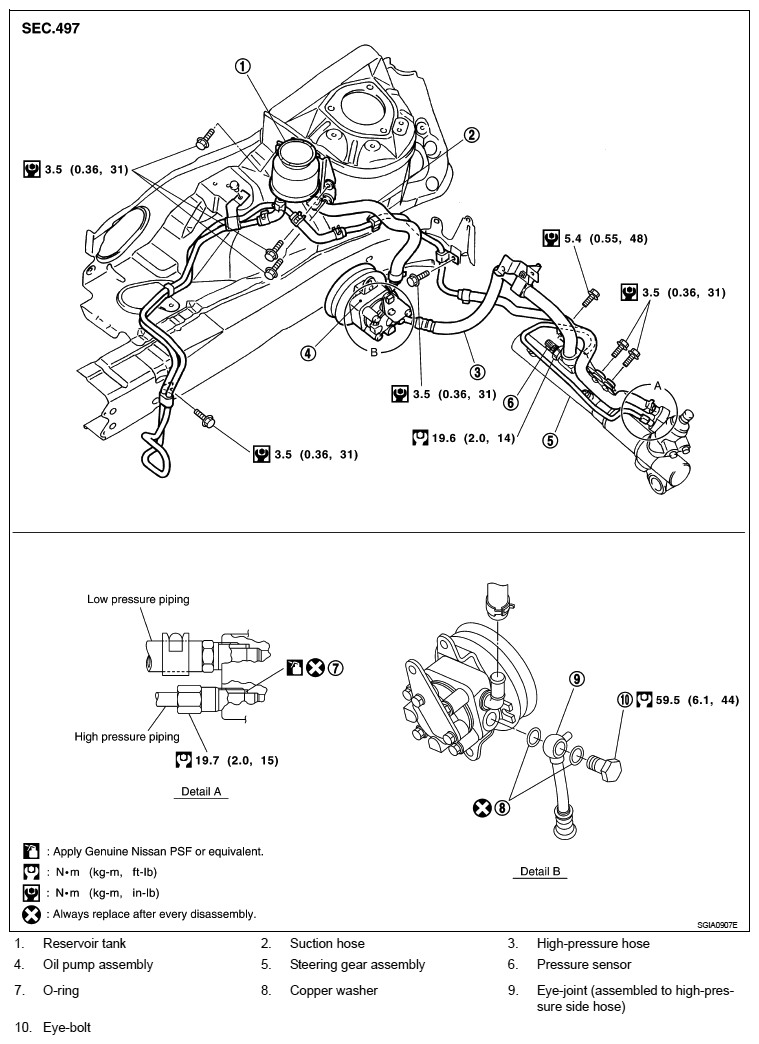

Fig 1: Hydraulic Line Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
