Vacuum Hose Drawing

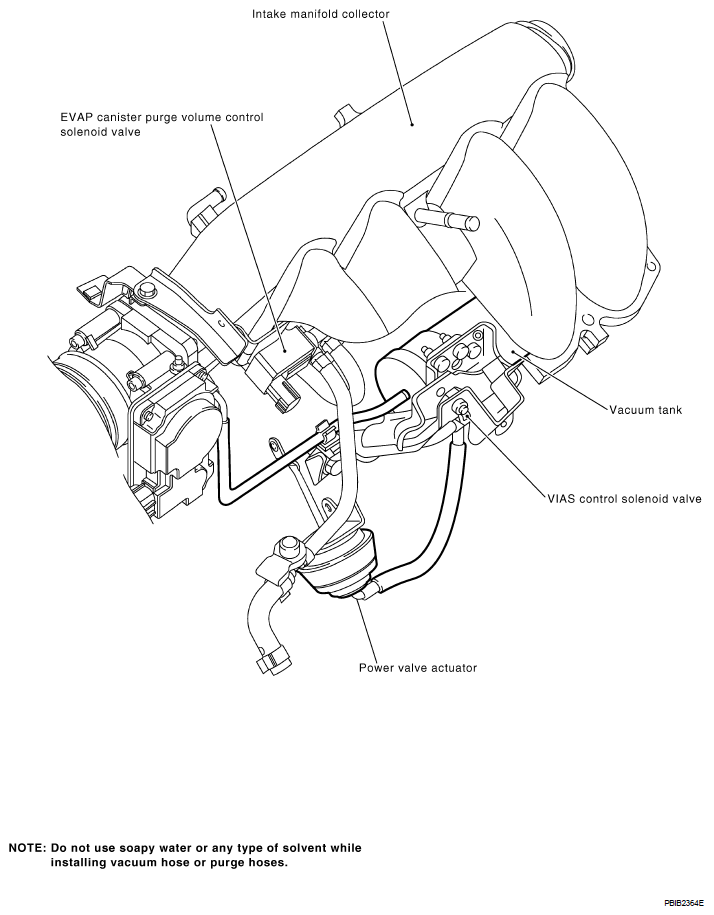

Fig 1: Identifying Intake Manifold Collector, Vacuum Tank And Power Valve Actuator

G06152306

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "SYSTEM DIAGRAM " for Vacuum Control System .
