Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

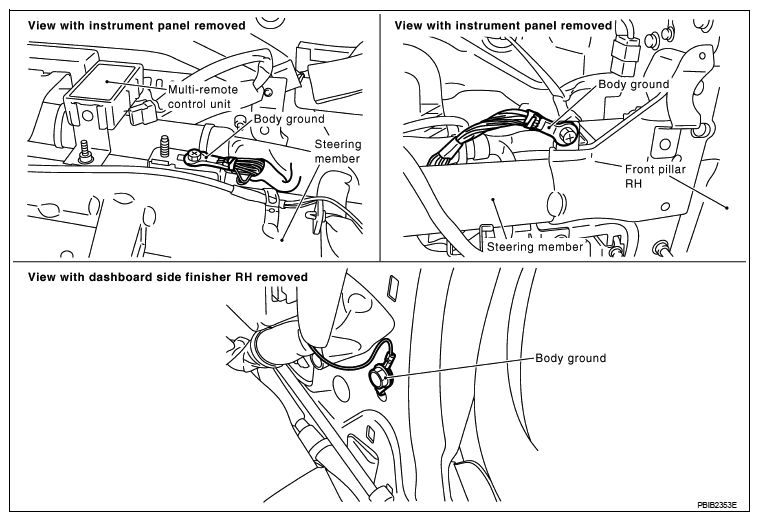

Fig 1: Identifying Multi-Remote Control Unit And Steering Member

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

1. Disconnect EVAP control system pressure sensor harness connector.

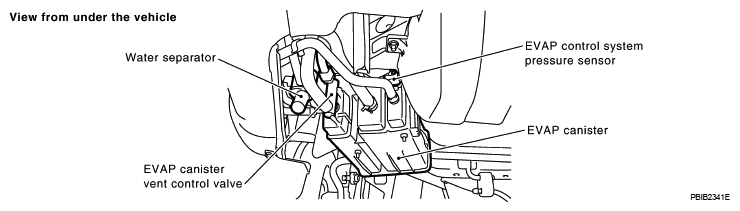

   Fig 2: Identifying Water Separator, EVAP Canister Vent Control Valve And EVAP Canister

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check sensor harness connector for water.

   Water should not exist.

   OK or NG

   OK: GO TO 3.

   NG: Repair or replace harness connector.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 4.

NG: Replace EVAP control system pressure sensor.

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

For wiring diagram, refer to WIRING DIAGRAM .

INSPECTION END
