DTC P0171 Fuel Injection System Function: Wiring Diagram

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

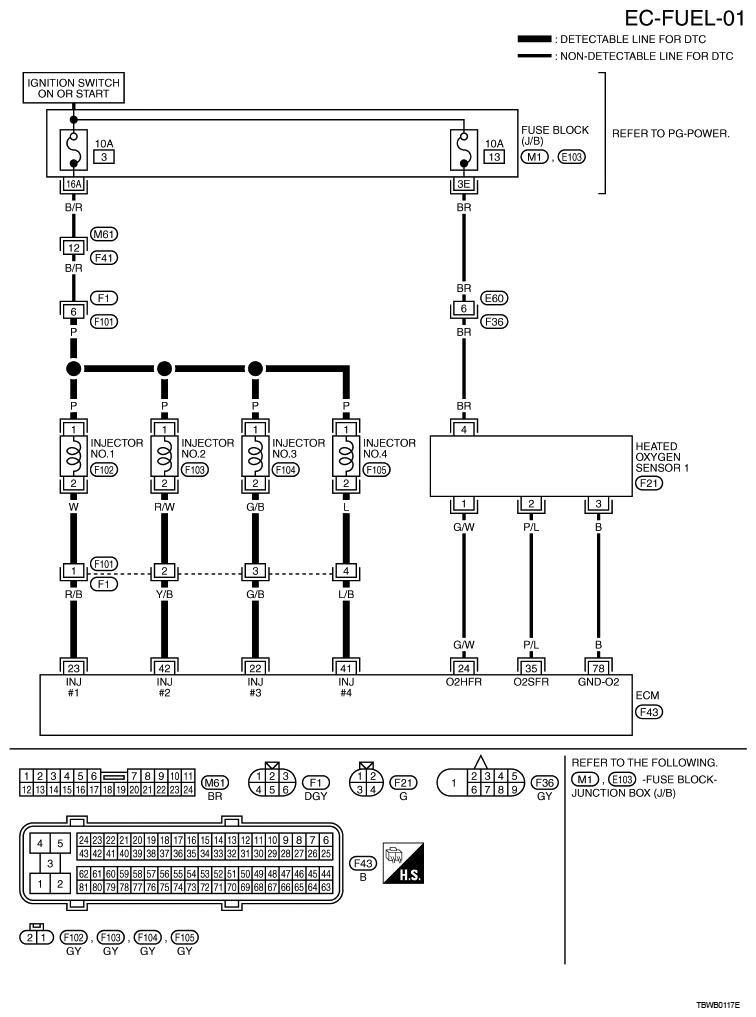

Fig 1: Wiring Diagram - EC-FUEL-01

G06152511

Courtesy of NISSAN MOTOR CO., U.S.A.
