Removal and Installation: Notes

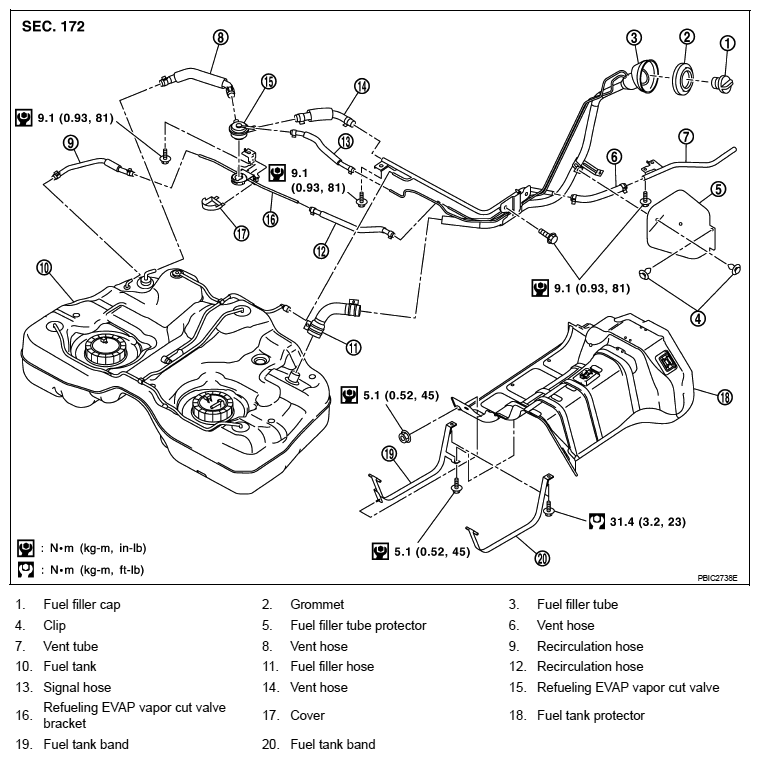

Fig 1: Fuel Tank Removal And Installation With Torque Specifications

G06153069

Courtesy of NISSAN MOTOR CO., U.S.A.
