Disassembly and Assembly: Notes

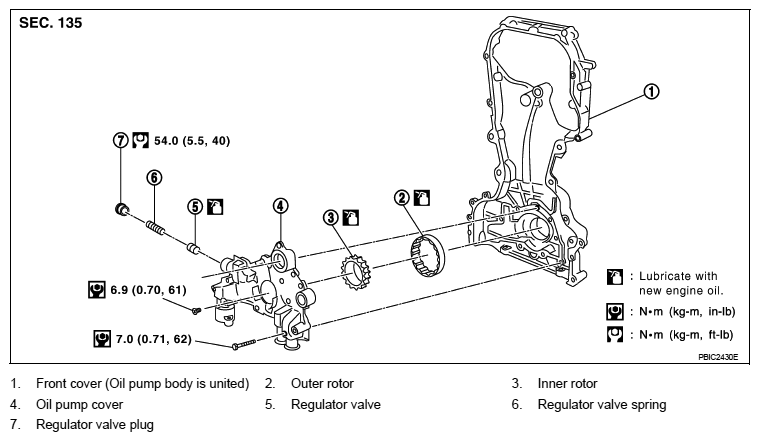

Fig 1: Oil Pump Disassembly And Assembly With Torque Specifications

G06152132

Courtesy of NISSAN MOTOR CO., U.S.A.
