A/T Models
>>
Notes
A/T Models: Notes

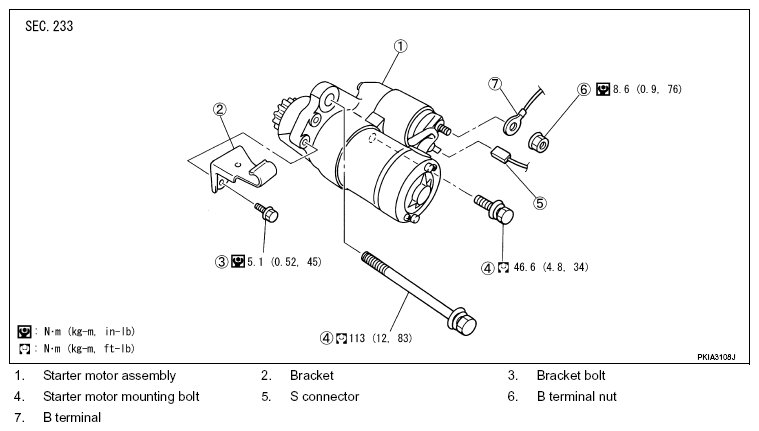

Fig 1: Starting System Replacement Components With Torque Specifications - A/T Models
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
