M/T Models

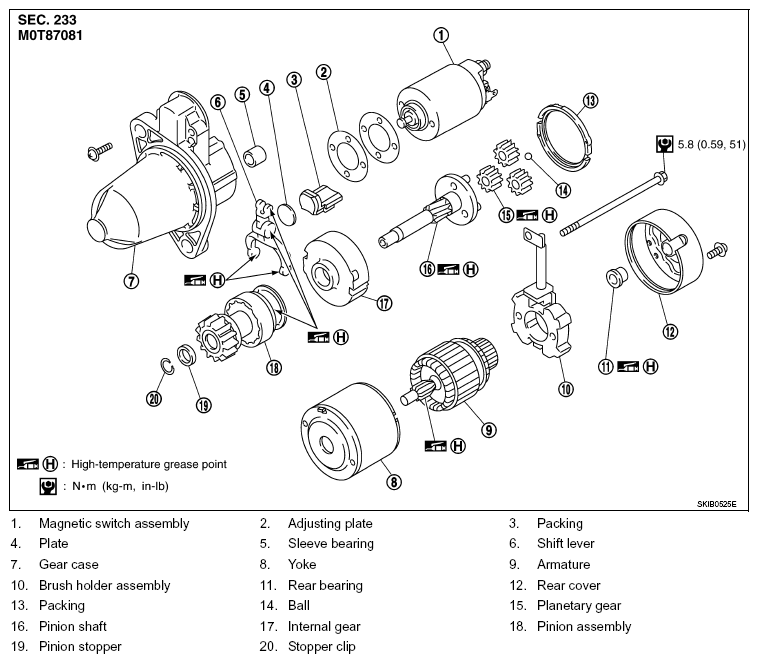

Fig 1: Exploded View Of Starting System Components With Torque Specifications - M/T Models

G06155883

Courtesy of NISSAN MOTOR CO., U.S.A.
