Notes
Disassembly and Assembly: Notes

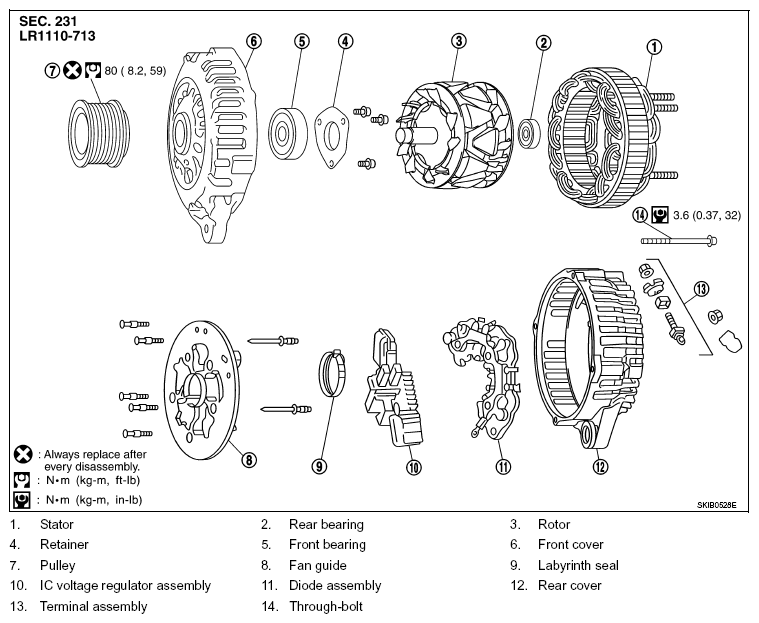

Fig 1: Exploded View Of Charging System With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
