Case and Housing Components

WARNING: This page is about a different variant/trim than selected.

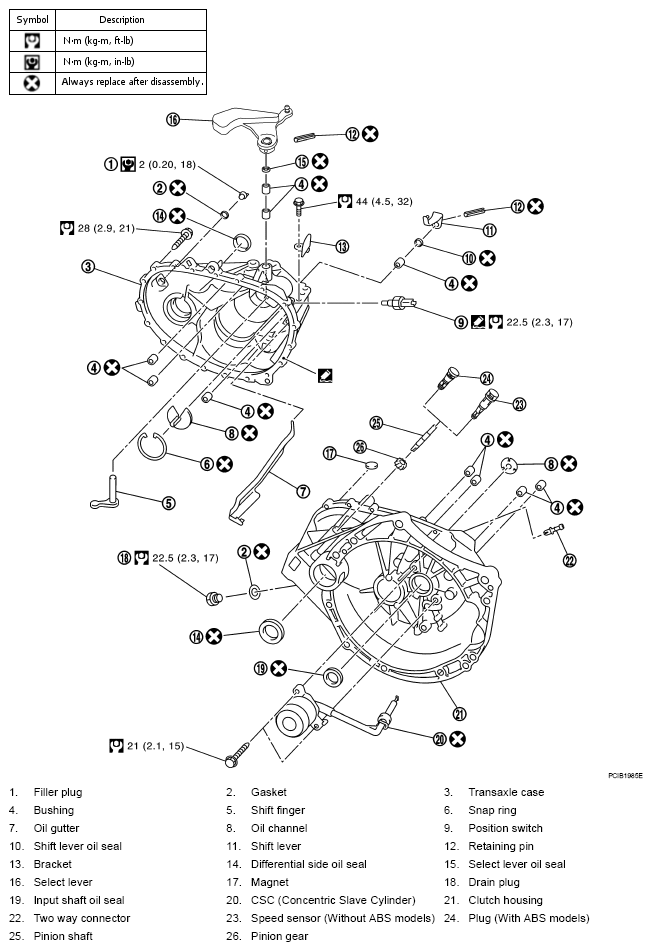

Fig 1: Case And Housing Replacement Components With Torque Specifications
G04926384

Apply Genuine Silicone RTV or the equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Refer to "COMPONENTS " for symbols not described on the above.
