Case and Housing Components

WARNING: This page is about a different variant/trim than selected.

For Recommended Chemical Products And Sealants, go to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

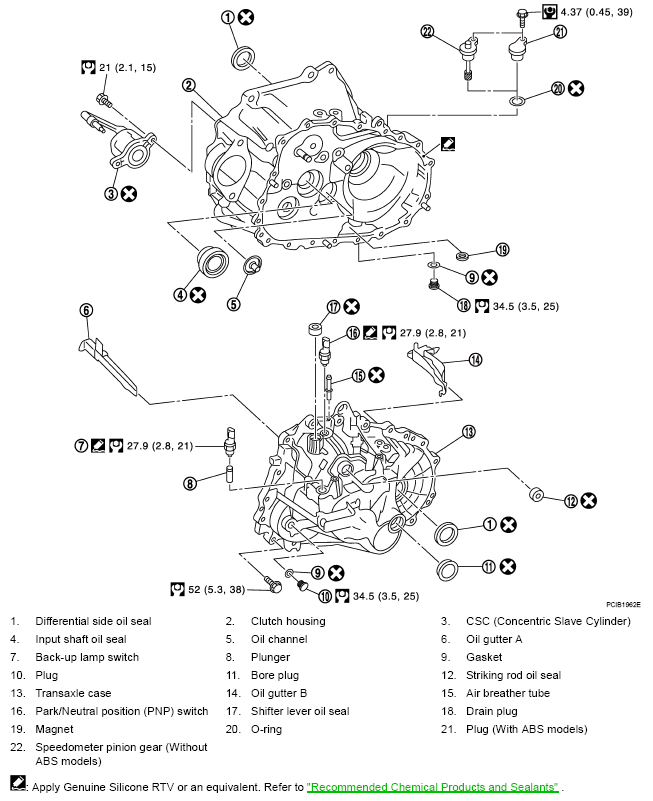

Fig 1: Case And Housing Replacement Components With Torque Specifications
G04926767

Refer to "COMPONENTS " for symbols not described on the above.
