Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove final gear mounting bolts and then separate the final gear from differential case.
  2. Remove differential side bearing (clutch housing side) using the drift (A) [SST: ST33061000 (J-8107-2)] and pullers (B).
    CAUTION: Hook a puller on the cage of differential side bearing.
  3. Remove speedometer drive gear.

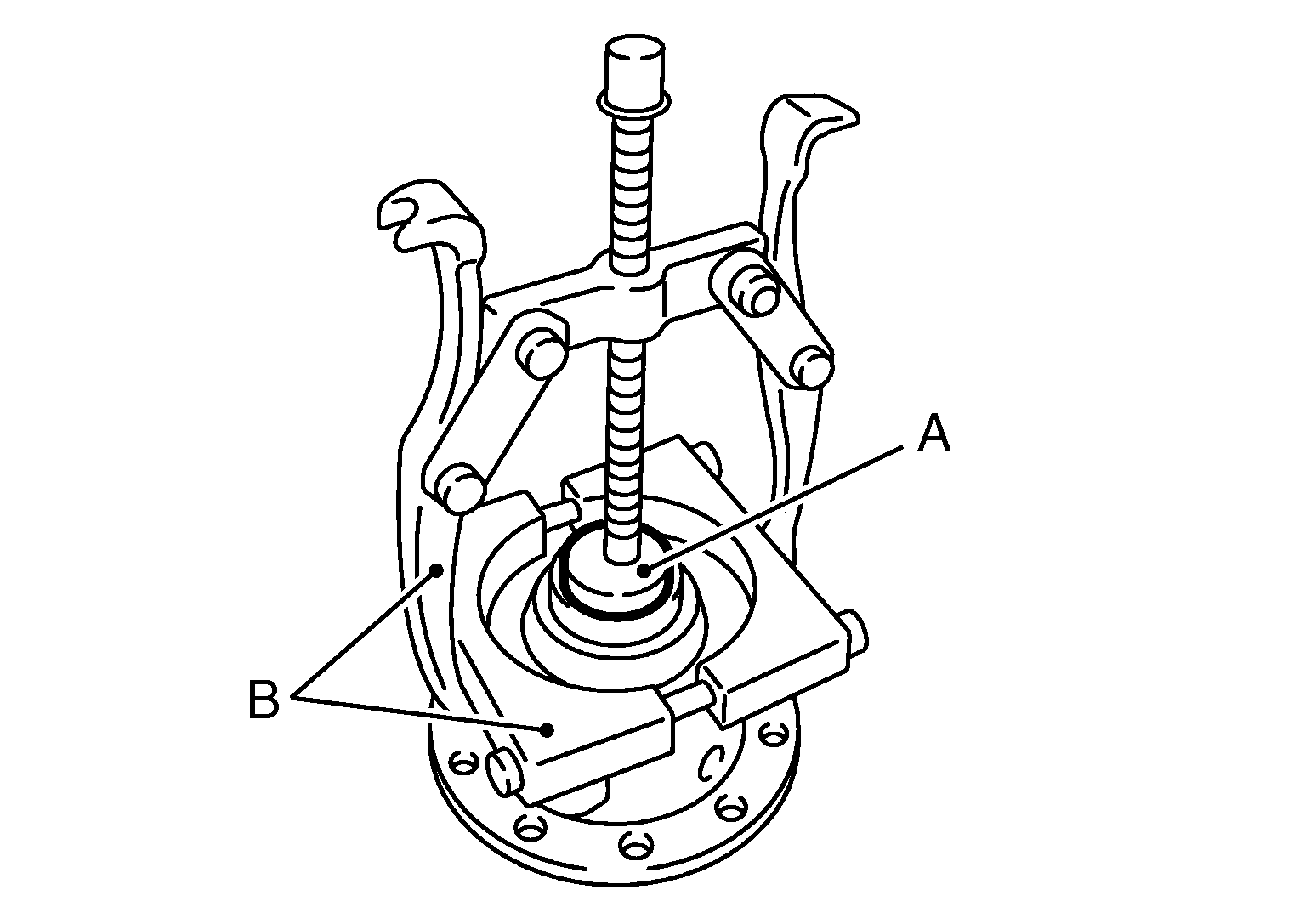

    Fig 1: Removing Differential Side Bearing (Clutch Housing Side) Using Drift
    G04889022
  4. Remove differential side bearing (transaxle case side) using the drift and pullers.
    CAUTION: Hook a puller on the inner race of differential side bearing.

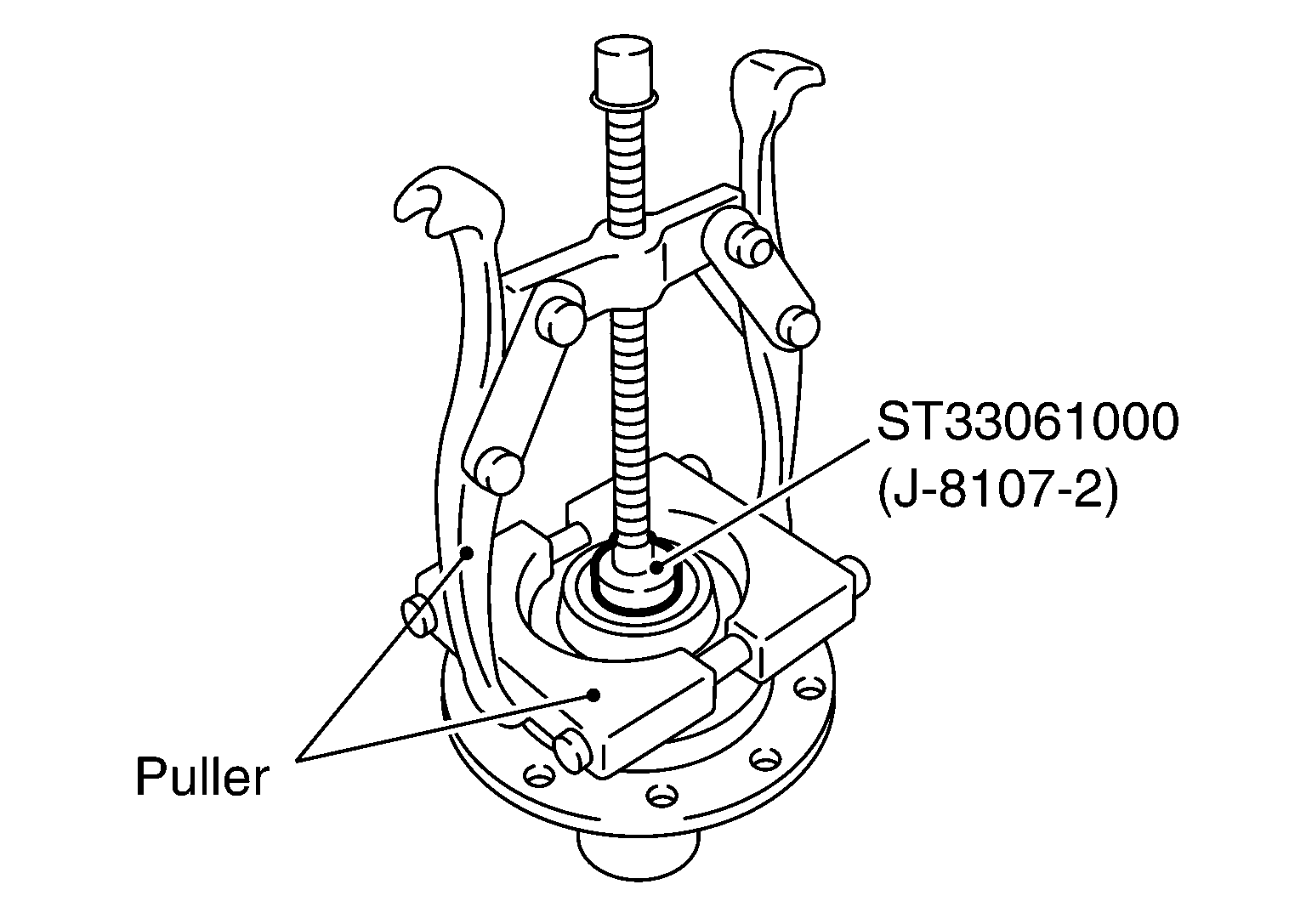

    Fig 2: Removing Differential Side Bearing (Transaxle Case Side) Using Drift
    G04889023
