Mil And Data Link Connector: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

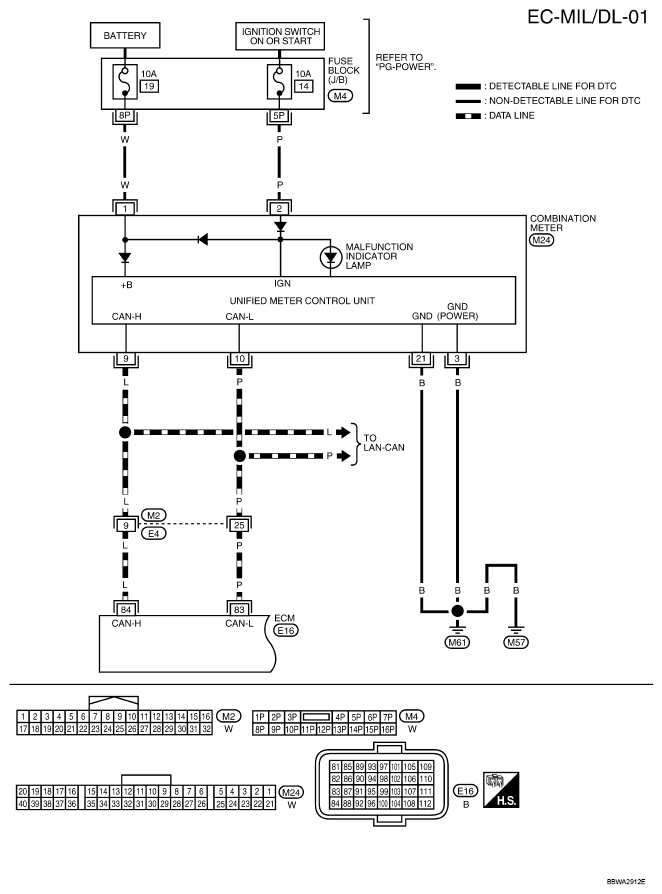

Fig 1: Wiring Diagram - EC-MIL/DL-01
G04925660
Fig 2: Wiring Diagram - EC-MIL/DL-02
G04925661
