Overview of Control system
WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
The control system consists of an input sensor, switches, the front air control and outputs.

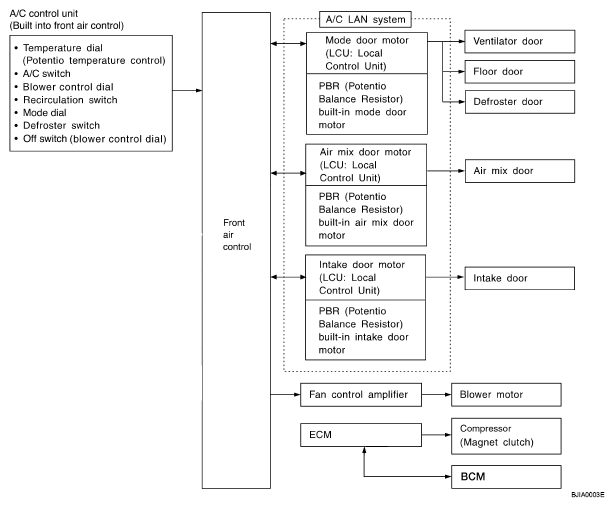

The relationship of these components is shown in the diagram below:
Courtesy of NISSAN MOTOR CO., U.S.A.
