Work Flow

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

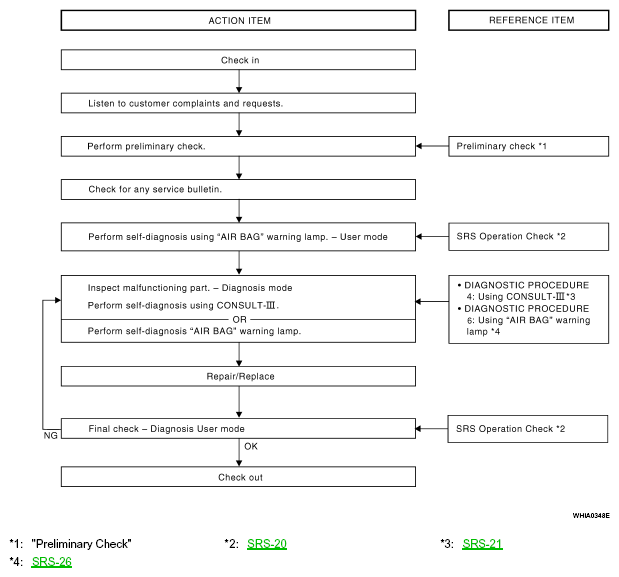

Fig 1: Trouble Diagnosis Flow Diagram
G05922750Courtesy of NISSAN MOTOR CO., U.S.A.
