Removal and Installation: Components

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

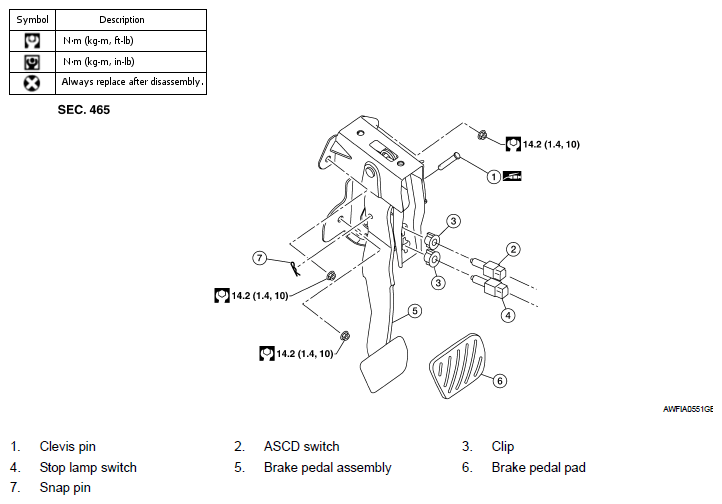

Fig 1: Brake Pedal Assembly Replacement Components With Torque Specifications
G05924449Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The clevis pin must be installed from the right side as shown above.
