Removal and Installation

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

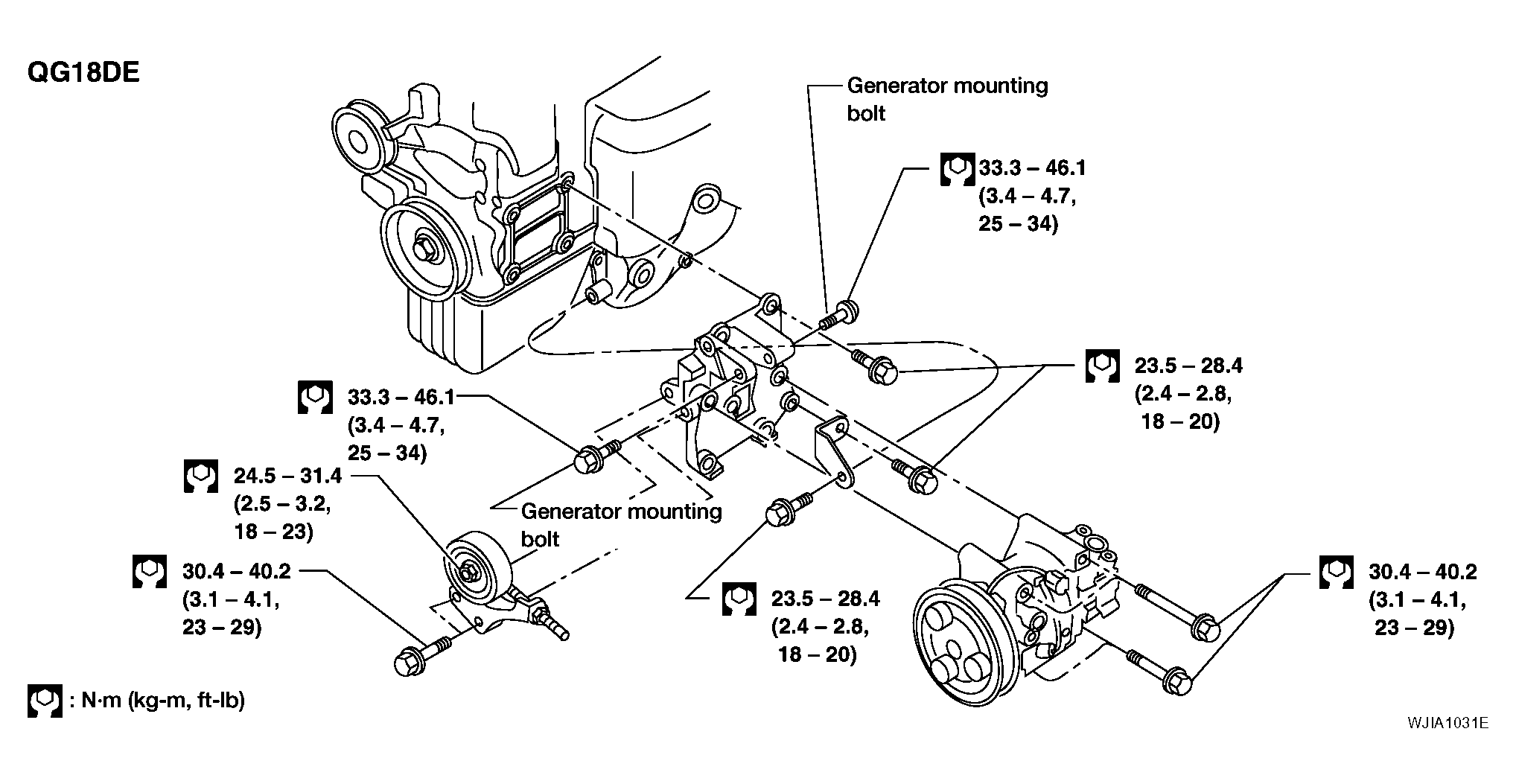

Fig 1: Compressor And Replacement Components With Torque Specifications (QG18DE)
G04195254Courtesy of NISSAN MOTOR CO., U.S.A.

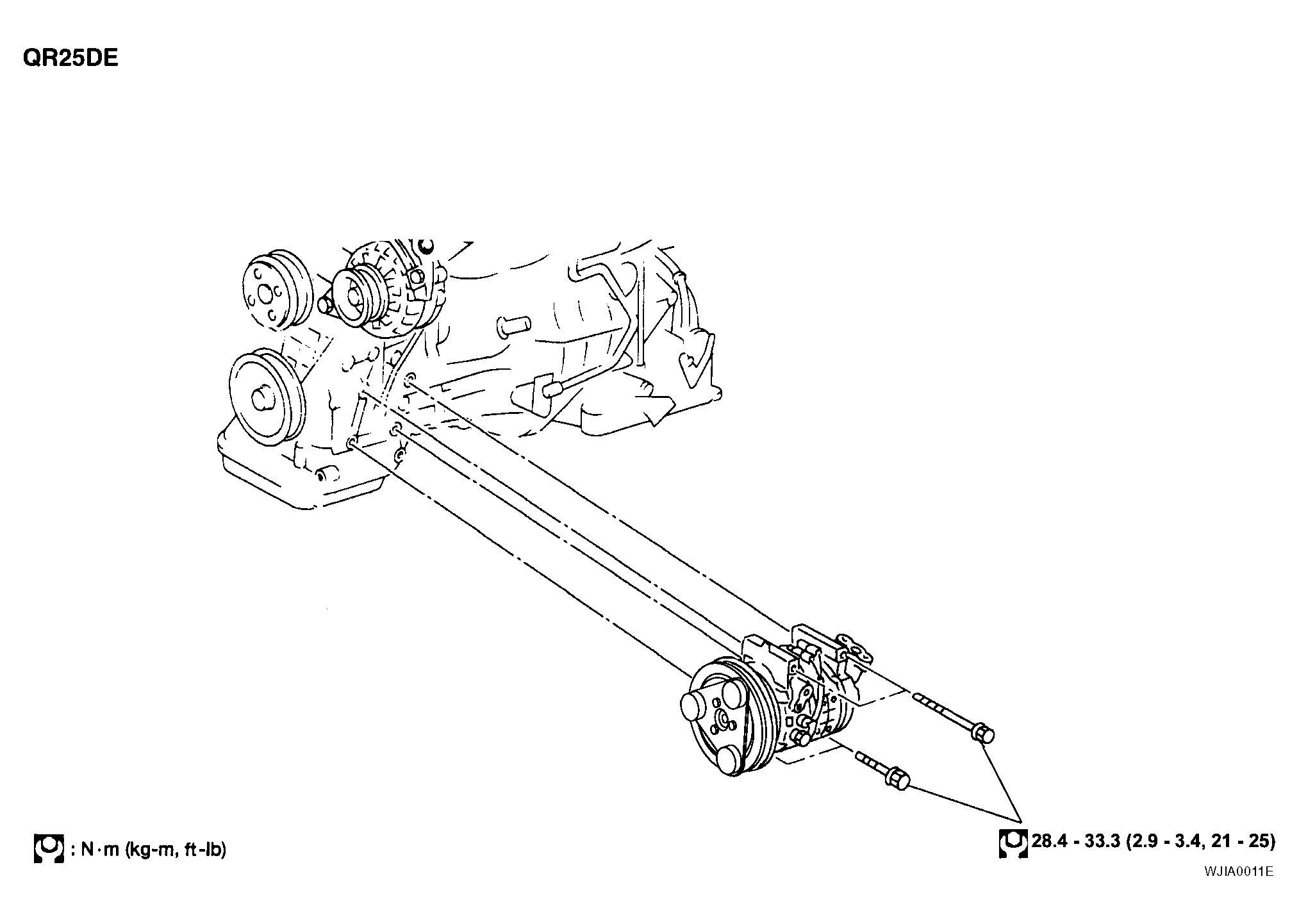

Fig 2: Compressor And Replacement Components With Torque Specifications (QR25DE)
G04195255Courtesy of NISSAN MOTOR CO., U.S.A.
