Component Parts and Harness Connector Location

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

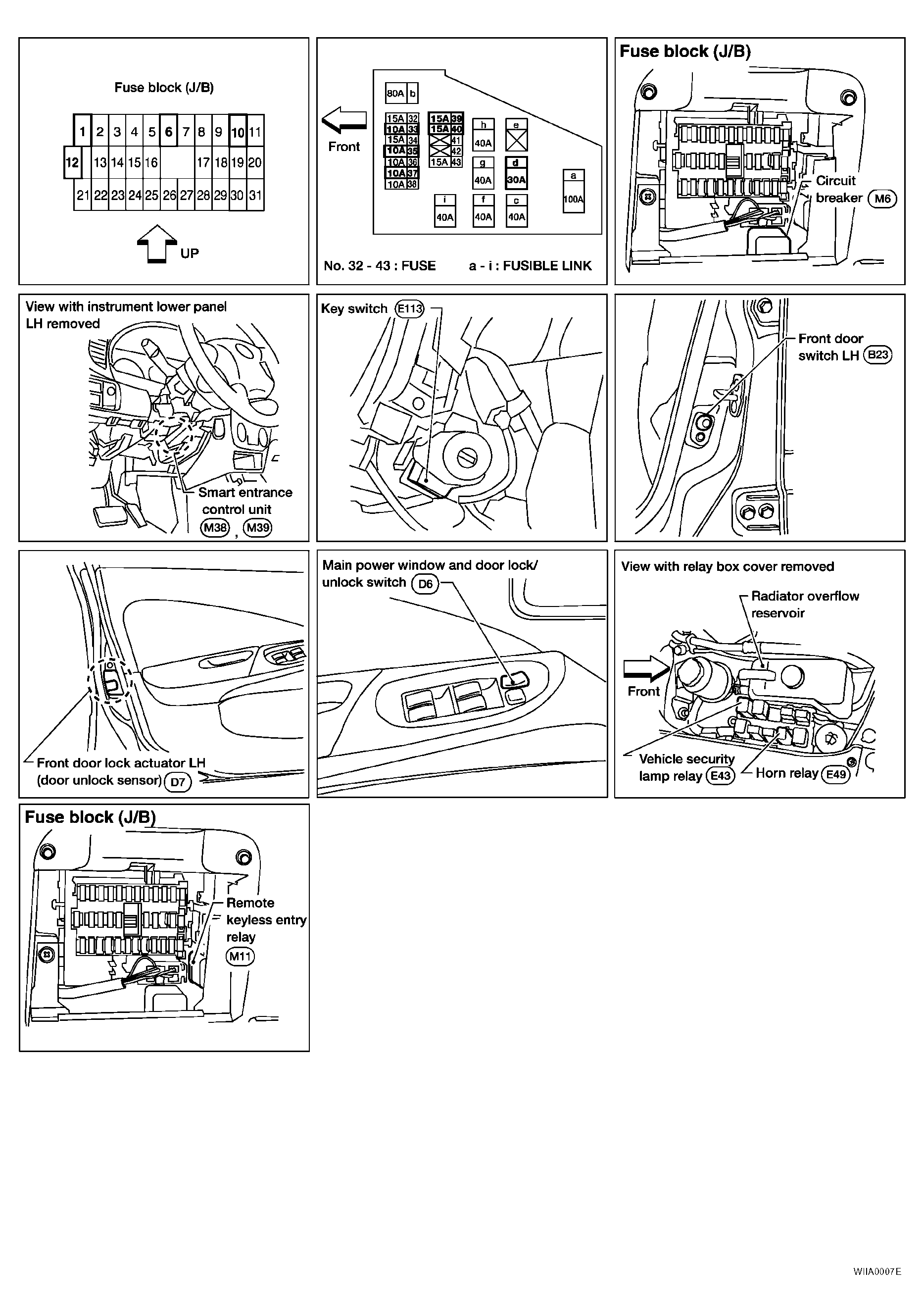

Fig 1: Remote Keyless Entry System Component Parts And Harness Connector Location
G04194936Courtesy of NISSAN MOTOR CO., U.S.A.
