Connector And Terminal Pin Kit

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Use the connector and terminal pin kits listed below when replacing connectors or terminals. The connector and terminal pin kits contain some of the most commonly used NISSAN/INFINITI connectors and terminals. For detailed connector and terminal pin replacement procedures, refer to the latest NISSAN/INFINITI Connector And Terminal Pin Service Manual.

CONNECTOR AND TERMINAL CHART

Tool number
(Kent-Moore No.)
Tool name		 Description
-

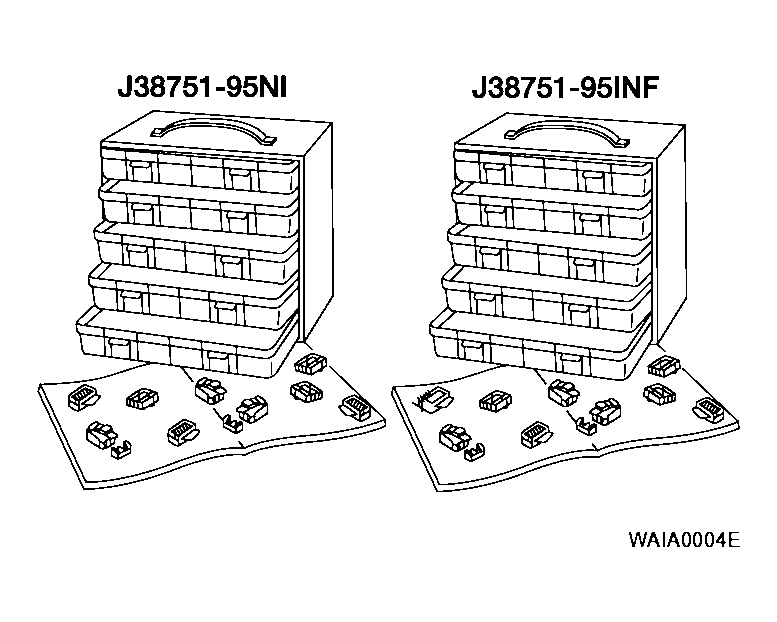

(J38751-95NI)
Connector and terminal pin kit (NISSAN)-
(J38751-95INF)
Connector and terminal pin kit (INFINITI)-

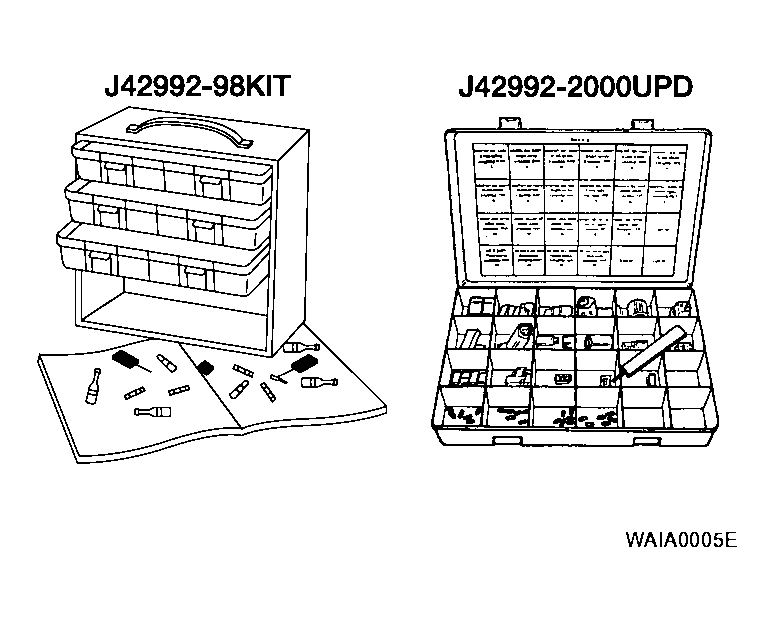

(J42992-98KIT)
OBD and terminal repair kit-
(J42992-2000UPD)
OBD-II Connector Kit Update
G04190055
G04190056
