Removal and Installation: Notes

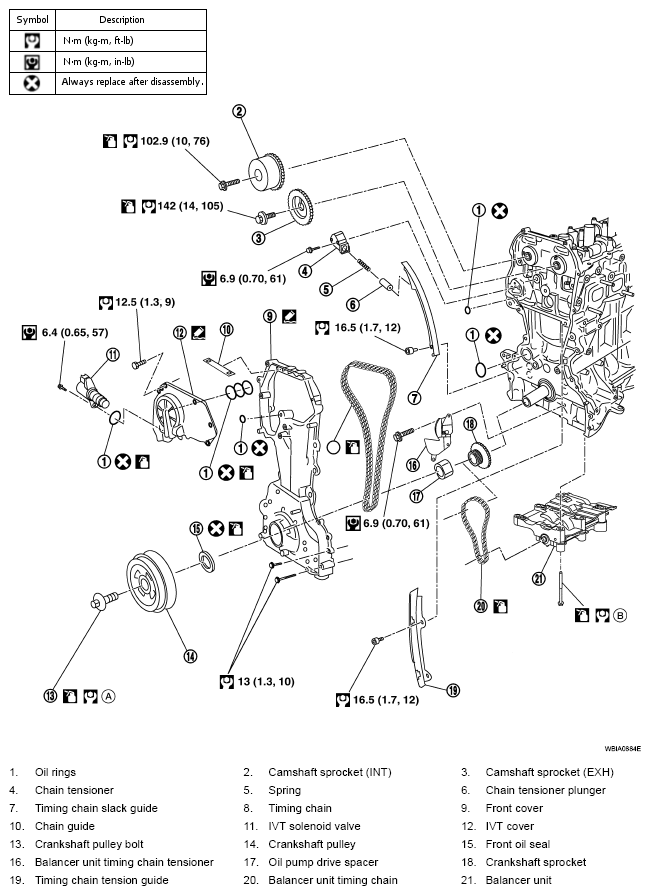

Fig 1: Timing Chain Replacement Components With Torque Specifications
G04924821
CAUTION: Apply new engine oil to parts marked in illustration before installation.
