Home >> Nissan-Datsun >> 2007 >> Sentra SE-R >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical (Qr25DE) >> Intake Manifold >> Removal and Installation >> Notes

Removal and Installation: Notes

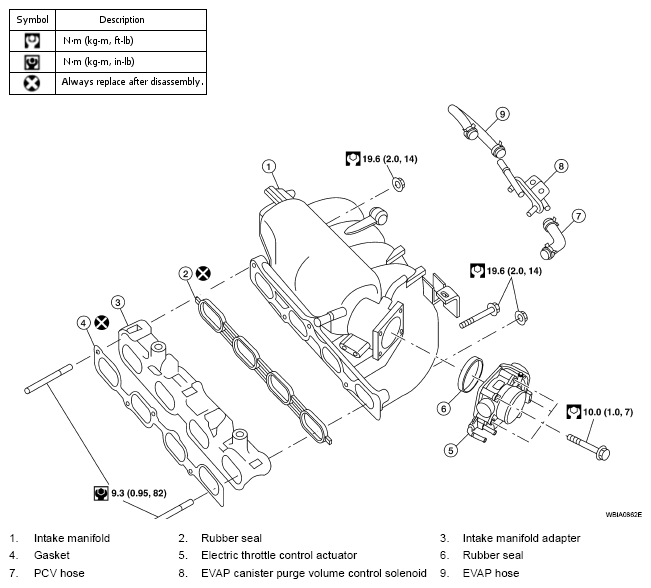

Fig 1: Intake Manifold Replacement Components With Torque Specifications

G04924749
