Instrument Panel Junction & Relay Blocks

NOTE: For instrument panel electrical unit locations, see Fig 1.

The fuse and fusible link box is located behind the left side dash, next to the ECM.

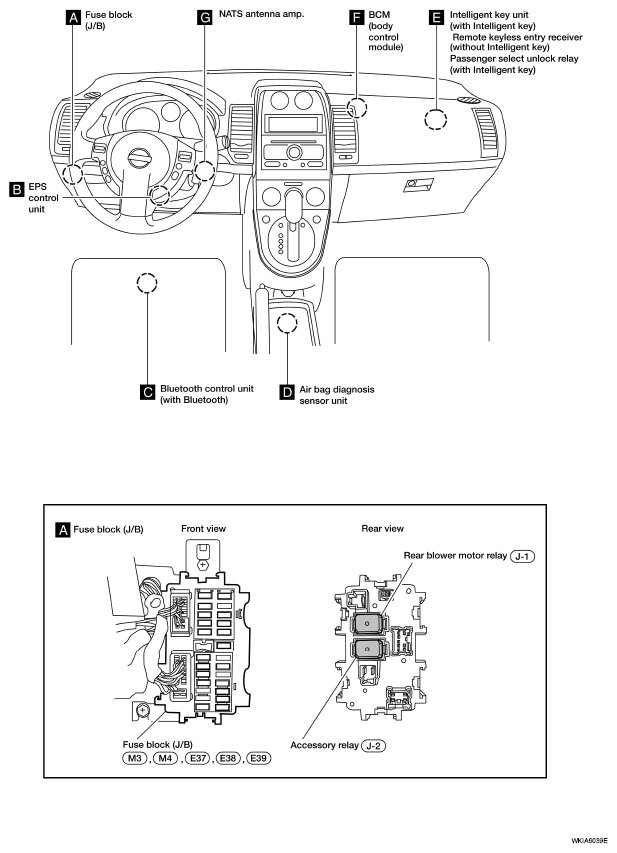

Fig 1: Locating Electrical Units In Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

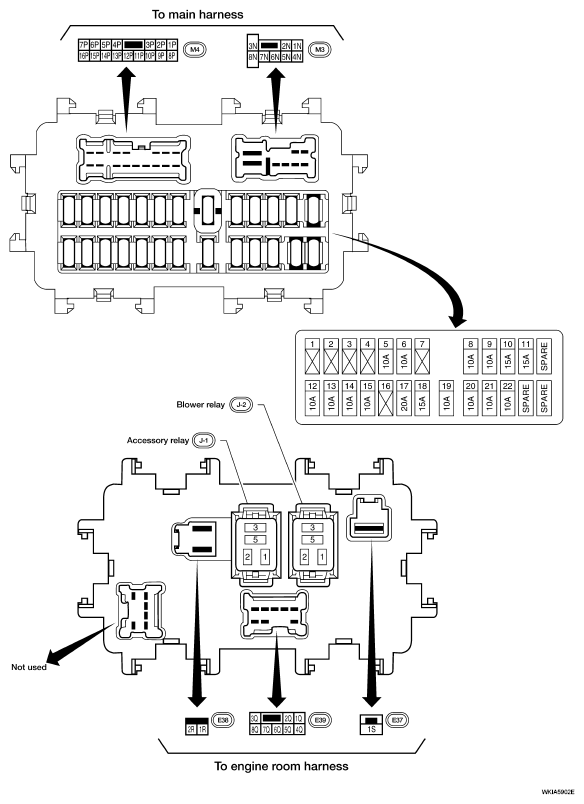

Fig 2: Identifying Fuse Block Components

Courtesy of NISSAN MOTOR CO., U.S.A.
