Removal and Installation MR20DE
>>
Notes
Removal and Installation MR20DE: Notes

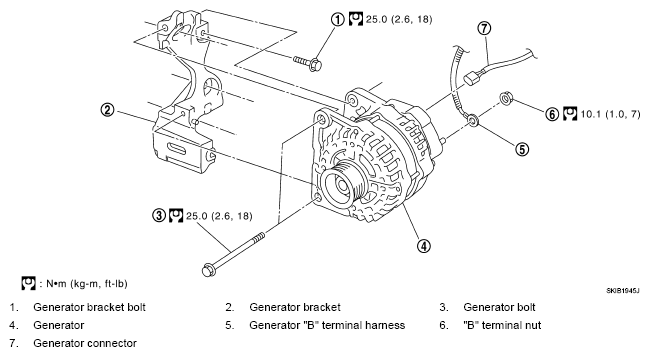

Fig 1: Charging System Replacement Components (MR20DE) With Torque Specifications
