Concept of Auto Active Test

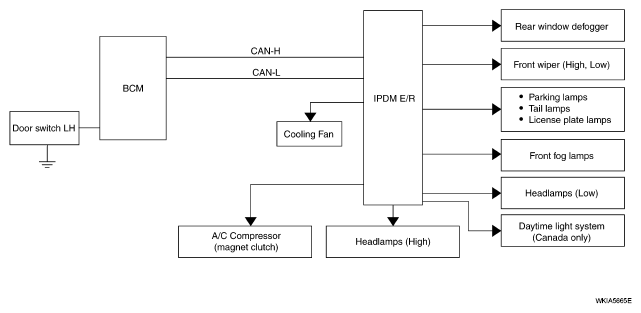

- IPDM E/R actuates auto active test mode when it receives door switch signal from BCM via CAN communication line. Therefore, when auto active test mode is activated successfully, CAN communication between IPDM E/R and BCM is normal.
- If any of the systems controlled by IPDM E/R cannot be operated, possible cause can be easily diagnosed using auto active test.
Diagnosis chart in auto active test mode
DIAGNOSIS CHART
| Symptom | Inspection contents | Possible cause | |
|---|---|---|---|
| Rear window defogger does not operate. | Perform auto active test. Does rear window defogger operate? | YES |
|
| NO |
|
||
| Any of front wipers, tail and parking lamps, front fog lamps, daytime light system (Canada only), and headlamps (High, Low) do not operate. | Perform auto active test. Does system in question operate? | YES |
|
| NO |
|
||
| A/C compressor does not operate. | Perform auto active test. Does magnet clutch operate? | YES |
|
| NO |
|
||
| Cooling fan does not operate. | Perform auto active test. Does cooling fan operate? | YES |
|
| NO |
|
||
| Oil pressure warning lamp does not operate. | Perform auto active test. Does oil pressure warning lamp blink? | YES |
|
| NO |
|
||
