Clip And Fastener: Description
Clips and fasteners in EI section correspond to the following numbers and symbols.
Replace any clips and/or fasteners which are damaged during removal or installation.

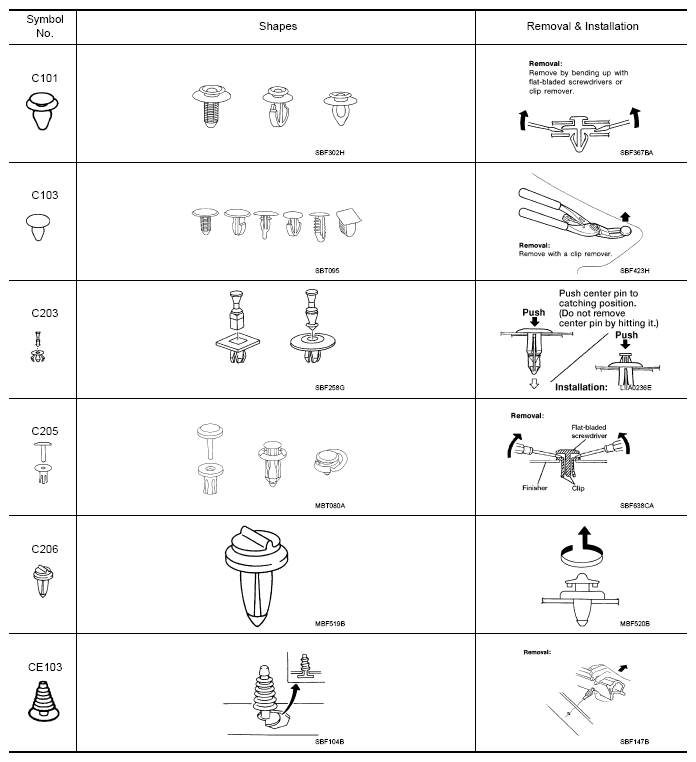

Fig 1: Identifying Clip And Fastener Description (1 Of 2)

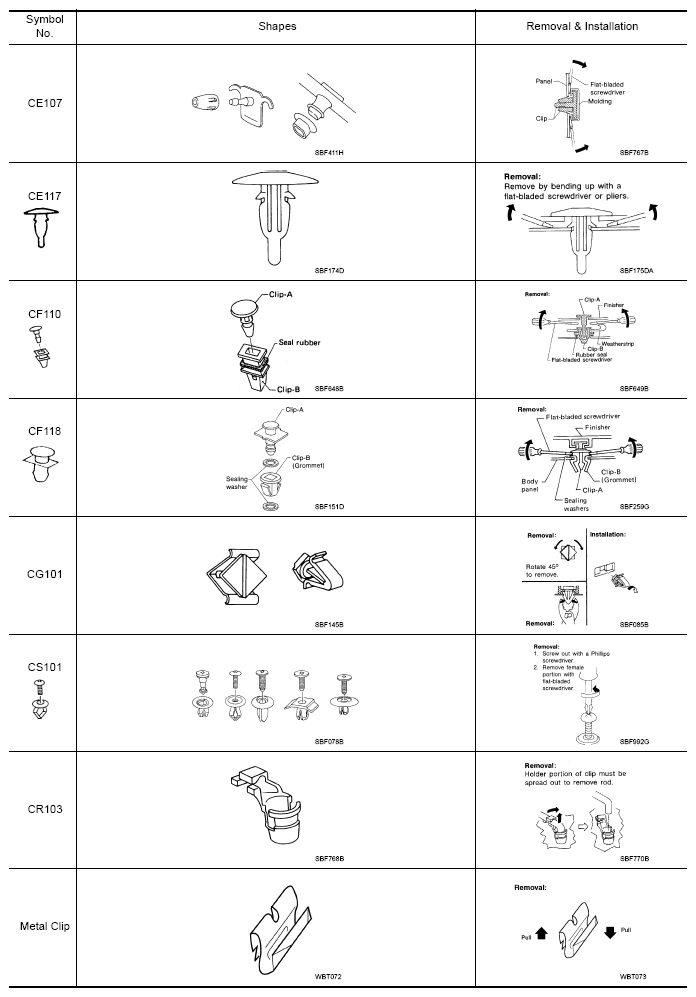

Fig 2: Identifying Clip And Fastener Description (2 Of 2)
