Home >> Nissan-Datsun >> 2007 >> Sentra SE-R >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Body, Lock & Security System >> Front Door Lock >> Component Parts Location

Component Parts Location

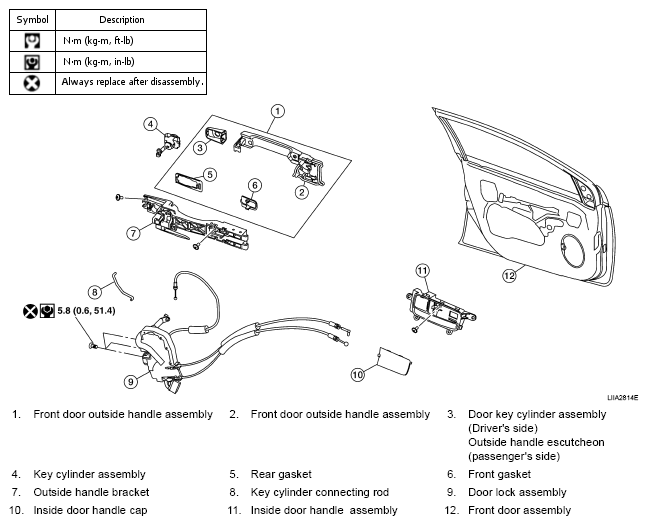

Fig 1: Exploded View Of Front Door Lock Component With Torque Specification

G04927721
