Integrated Display System: Schematic

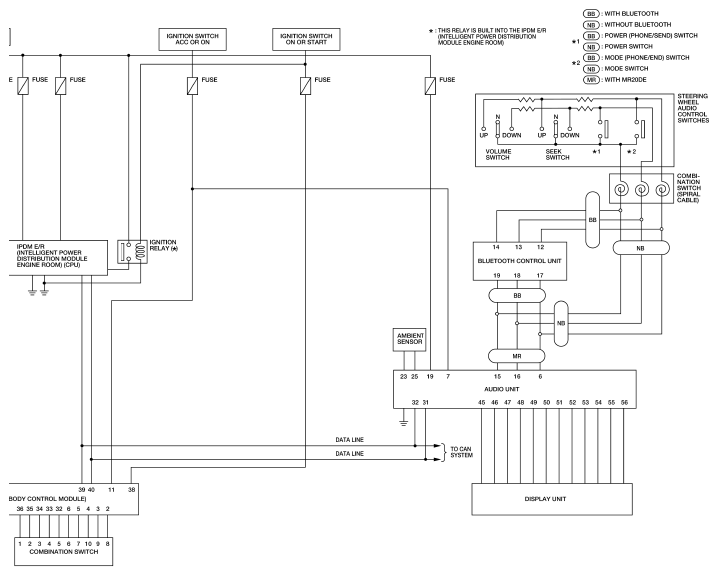

Fig 1: Integrated Display System - Schematic Diagram

G04928699
