Home >> Nissan-Datsun >> 2007 >> Sentra SE-R Spec V, RS6F52A >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Front Suspension Assembly >> Components

Front Suspension Assembly: Components

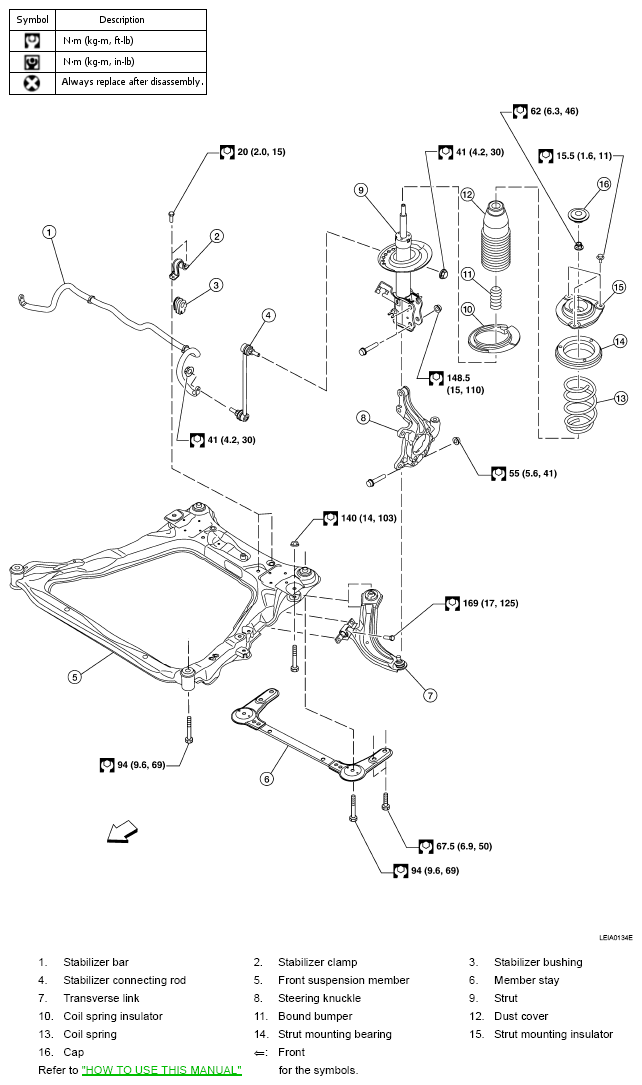

Fig 1: Front Suspension Assembly With Torque Specifications

G04927224

Refer to "HOW TO USE THIS MANUAL " for the symbols.
