LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2007
>>
Quest Base
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Shift Control System
>>
Removal and Installation
>>
Control Device
Control Device

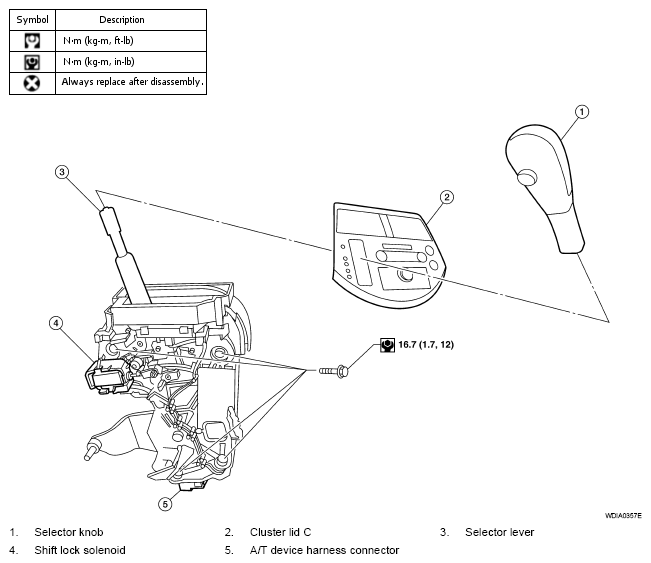

Fig 1: Shift Lock Solenoid, Selector Lever And Shift Knob With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
