Nissan-Datsun
>>
2007
>>
Quest Base
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Shift Control System
>>
Removal and Installation
>>
Control Cable
Control Cable

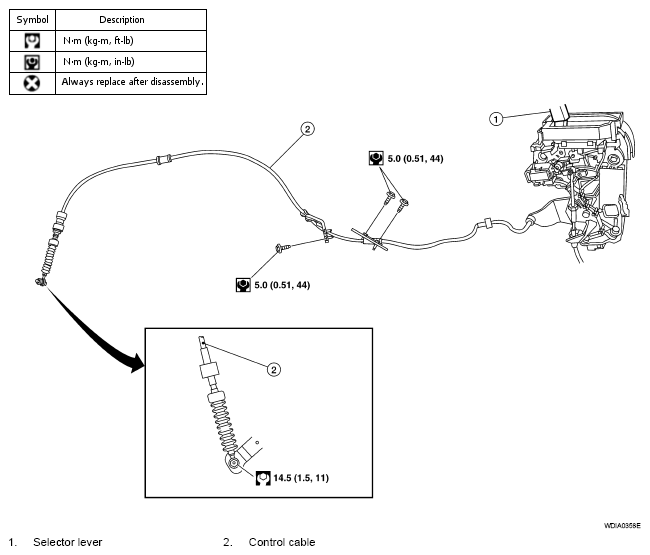

Fig 1: Selector Lever And Control Cable With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
