Cross-Sectional View
Cross-Sectional View

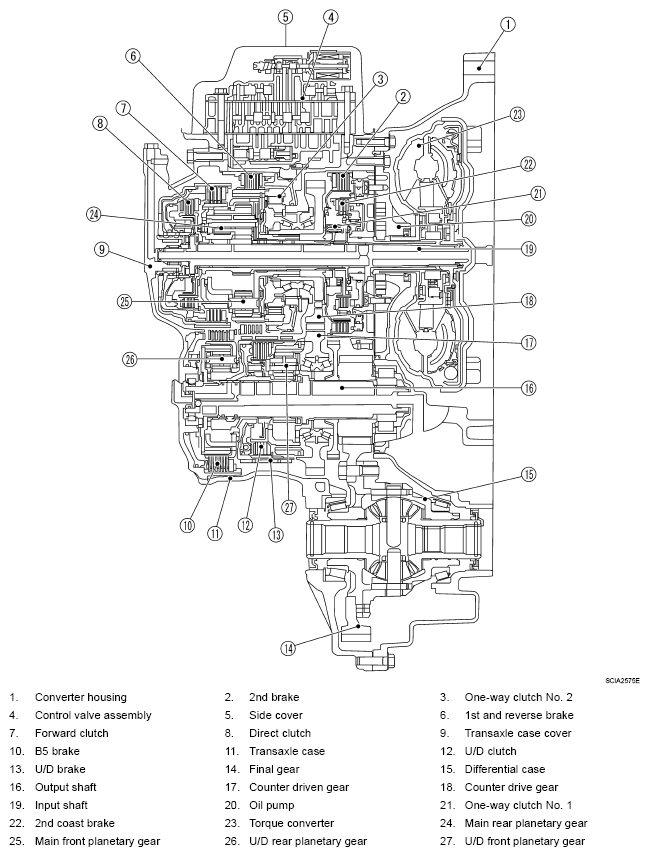

Fig 1: Cross-Sectional View - A/T Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
