ASCD Indicator: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

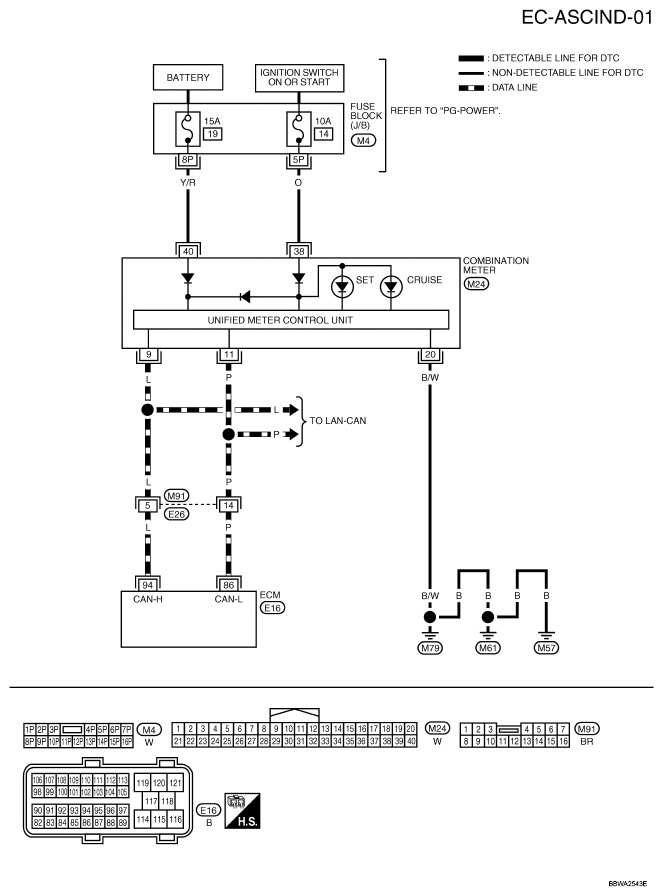

Fig 1: Wiring Diagram - EC-ASCIND-01

G04905836

Courtesy of NISSAN NORTH AMERICA, INC.
