Removal and Installation: Notes

For Installation, go to INSTALLATION - ROCKER COVER .

For Installation, go to INSTALLATION - CAMSHAFT .

For Installation, go to INSTALLATION - CYLINDER HEAD .

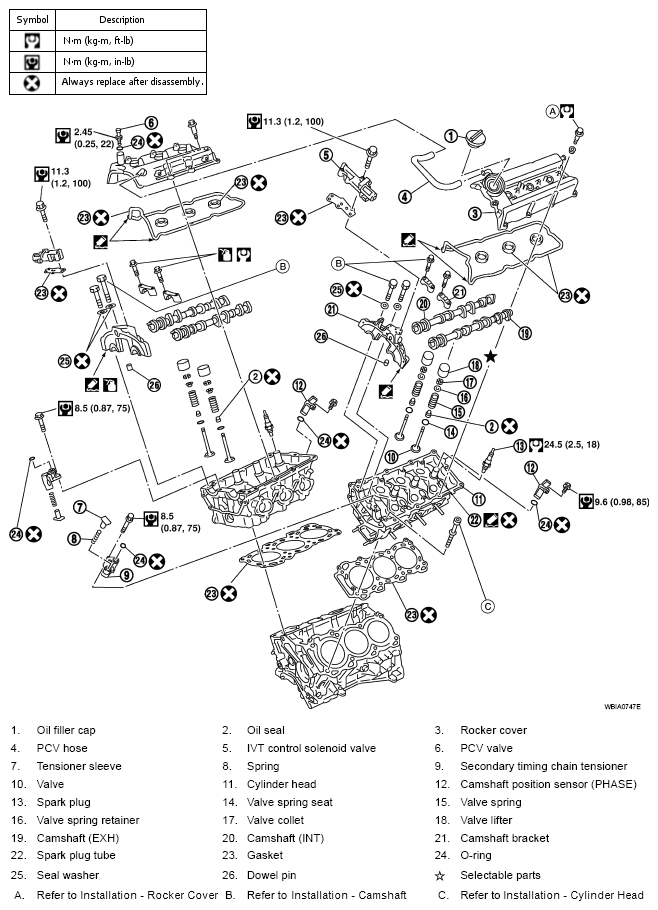

Fig 1: Cylinder Head Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
