Disassembly and Assembly: Notes

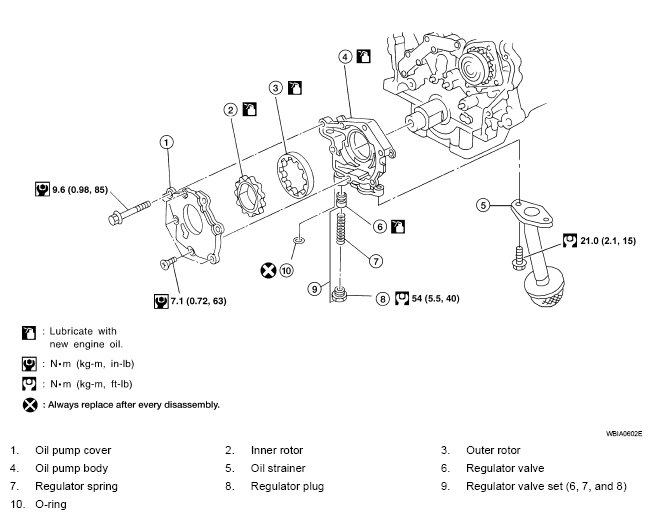

Fig 1: Disassembling/Assembling Oil Pump Components With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
