Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Lubrication System
>>
Lubrication Circuit
Lubrication Circuit

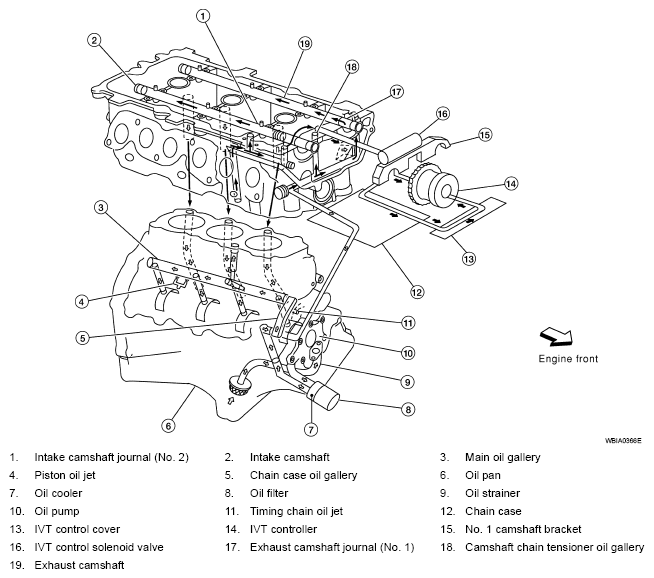

Fig 1: Identifying Lubrication System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
