Evaporative Emission Line Drawing

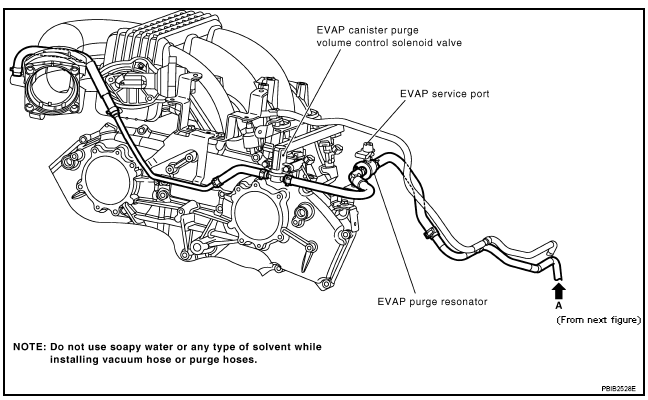

Fig 1: Identifying Evaporative Emission Components Location (1 Of 2)
G04911410Courtesy of NISSAN MOTOR CO., U.S.A.

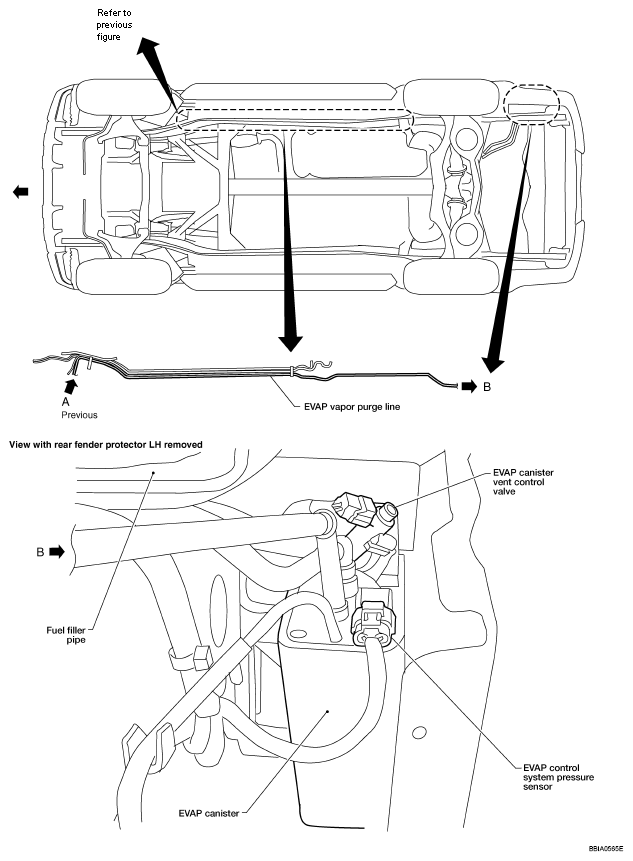

Fig 2: Identifying Evaporative Emission Components Location (2 Of 2)
G04911411Courtesy of NISSAN MOTOR CO., U.S.A.
