DTC P1217 Engine Over Temperature: Wiring Diagram

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS PATHFINDER-->.

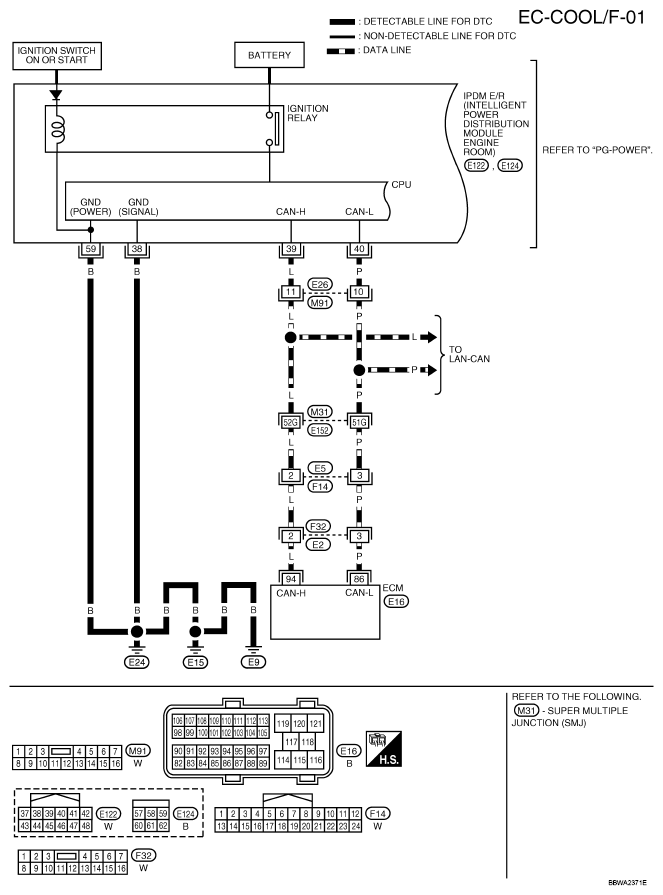

Fig 1: Identifying Wiring Diagram - EC-COOL/F-01

Courtesy of NISSAN NORTH AMERICA, INC.

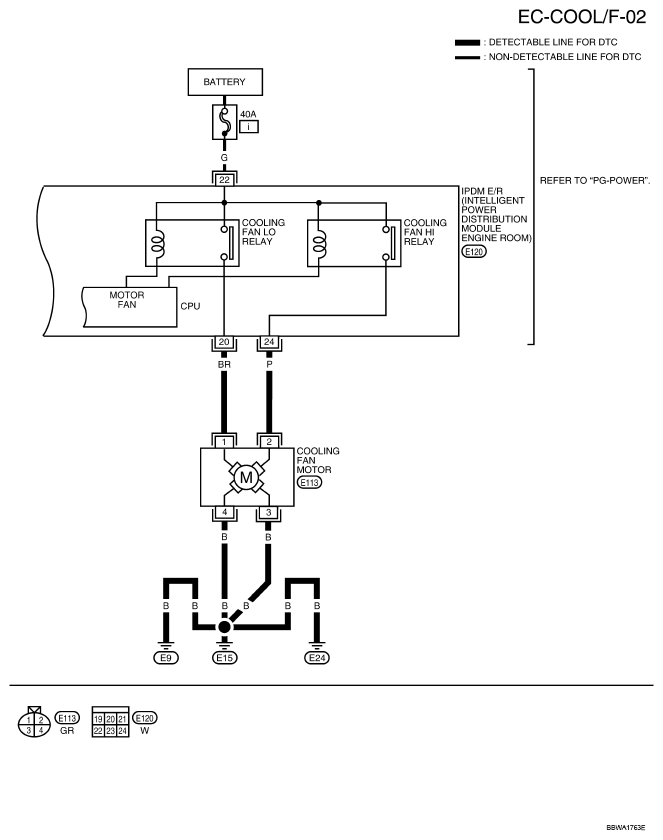

Fig 2: Identifying Wiring Diagram - EC-COOL/F-02

Courtesy of NISSAN NORTH AMERICA, INC.
