Home >> Nissan-Datsun >> 2007 >> Murano SL, AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Assembly >> Disassembly and Assembly >> Components

Disassembly and Assembly: Components

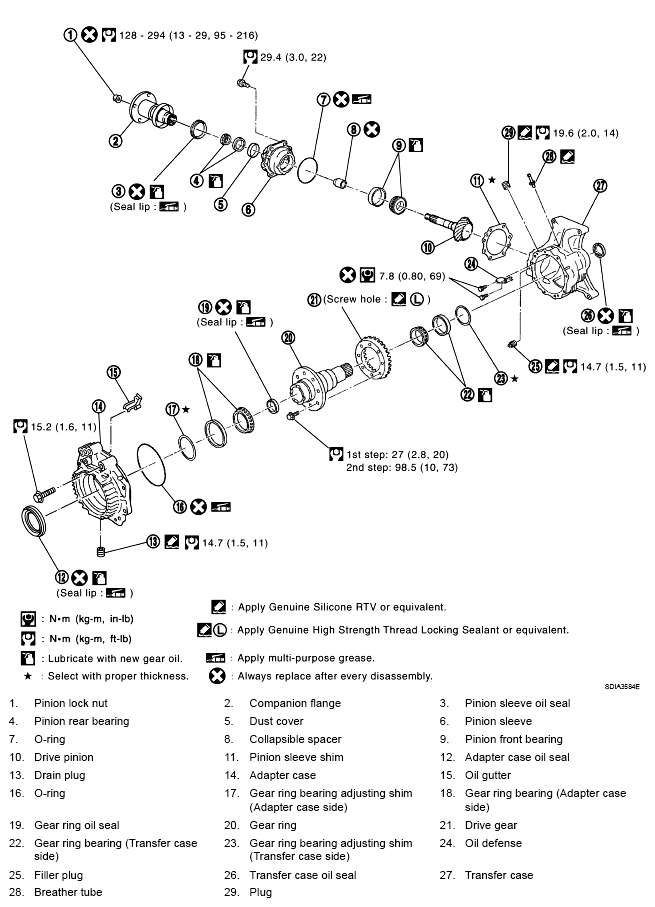

Fig 1: Transfer Assembly Replacement Components With Torque Specifications

G04921269
