Home >> Nissan-Datsun >> 2007 >> Murano SL, AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Lubrication System >> System Chart

System Chart

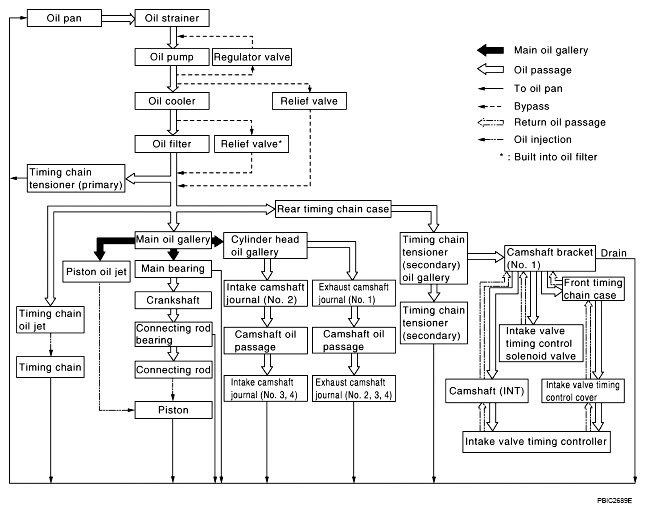

Fig 1: Lubrication System Chart

G04919901
