CAN Communication Unit: Notes
WARNING: This page is about a different car, the 2006 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Refer to the table shown in CAN SYSTEM TYPE DETERMINATION CHART to determine CAN system type.
CAN SYSTEM TYPE DETERMINATION CHART
| Body type | Sedan | |||||||
| Axle | 2WD | |||||||
| Engine | VQ35DE | |||||||
| Transmission | M/T | A/T | ||||||
| Brake control | TCS | TCS | VDC | |||||
| Navigation system | x | x | x | |||||
| Automatic drive positioner | x | x | x | x | x | x | ||
| CAN system type | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| CAN system trouble diagnosis | CAN SYSTEM (TYPE 1) | CAN SYSTEM (TYPE 2) | CAN SYSTEM (TYPE 3) | CAN SYSTEM (TYPE 3) | CAN SYSTEM (TYPE 5) | CAN SYSTEM (TYPE 6) | CAN SYSTEM (TYPE 7) | CAN SYSTEM (TYPE 8) |
| x: Applicable | ||||||||

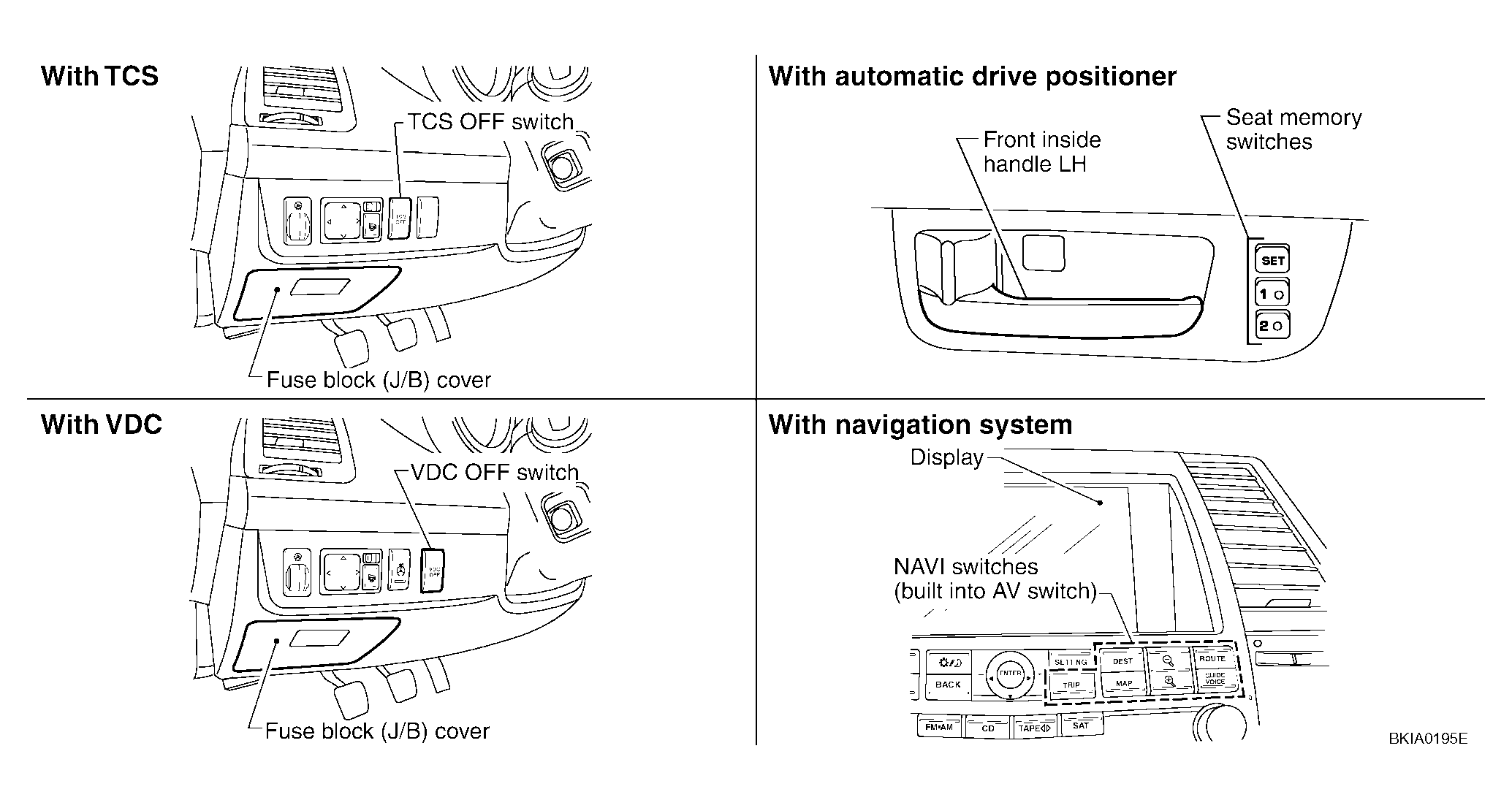

NOTE:
Confirming the presence of the following items helps to identify CAN system type.
